Cylindrical Roller Bearings

  • Large load capacity
  • Suitable for high-speed applications
  • Effective when the bearing rings require interference.

Configuration N , NU

Configuration N Configuration NU
  • No redial load capacity due to no flange of outer or inner ring.
    Used a non-locating side.

Configuration NF , Configuration NJ , Configuration NUH

Configuration NF Configuration NJ Configuration NUH
  • Small radial load capacity in only one direction with on integral flange or by mountings a loose flange.

Configuration EG

Configuration EG

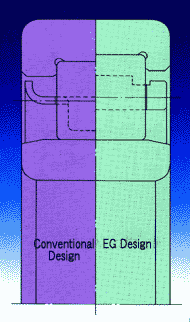

  • Higher Load Capacities Provide Longer Life Using larger rollers than those in conventional bearings drastically increases the load carrying capacity of this bearing design. This increase in load capacity provides for longer bearing life.
  • Low Temperature Rise and Quiet Operation A polyamide retainer is highly effective in minimizing temperature increases and ensuring quiet operation at high operating speeds.
