SS Series Wet Type Solenoid Operated Directional Control Valve (G01)

Performance Curve


Pressure loss characteristics

Pressure loss characteristics



Type Flow path PA PB AT BT PT
SS-G01
SA-G01
A2X, H2X, E2X d d - - -
A3X, H3X b b b b -
E3X b b b b -
A3Z, H3Z, E3Z a a a a -
A4, H4, C4 a a a a a
A5, H5, C5, C6S b b b b -
C1, C1S b b a b -
C2 a b b b -
C6 b b a a -
C7Y f f e e c
C8 a f b e c
C9 a a b b -

Hydraulic oil viscosity 32mm2 /s{cSt}

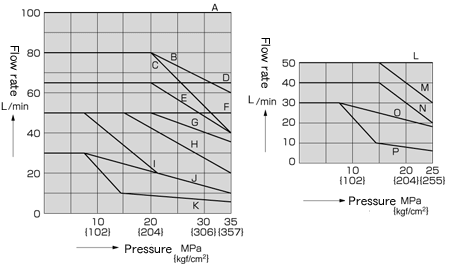

Permissible pressure - Flow rate valves

Permissible pressure - Flow rate valves Permissible pressure - Flow rate valves

Notes : 1.Description in parenthesis is given for an AC solenoid.

2.Description in parenthesis is given for the rectifier built-in type solenoid (E*) except for the quick return type, and for the power supply solenoid (D*) where a surge voltage absorbing diode is mounted on the electric circuit.


Pressure Mpa - Flow rate valves
