Power finisher TF-4H

Machine specification

Part (Plating shaft) Outer dia : Ø10 ~
Full length : 150 ~ 550mm
Part loading speed
(Outer dia Ø22mm)
Cycle time (ref.)
MAX 121mm sec (Part rpm 5000)
About 5sec. (Work length 240mm)
No. of heads 4 sets
Coolant Oil-based
Coolant filtration system 1st : Paper filter
2nd : Bag filter
Floor layout Width × Depth : 1935 × 1876 mm
Height : 2363mm
Treatment of used film Roll-up above lapping heads

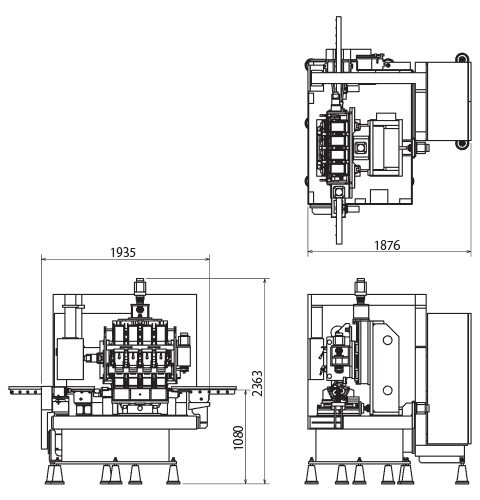

Machine size (outline)
