PRECISION ROLL FORMING MACHINE PFM-X series

PFM-915X
Max. rolling dia. (mm) 40
Max. rack holder width (mm) 145 (250)
Max. rolling module 1.3
Max. rack length (mm) 1,017
Rolling stroke (mm) 1,150
Maximum stroke (rack change-out) (mm) 1,350
Max. rolling speed (m/min) 25
Opening section distance (mm) 139.7
Work height (mm) 1,400
Width x depth (machine base) (mm) 1,560 x 1,250
Height of machine (mm) 3,200

Standard accessories

  • Lubrication unit
  • Electric Control equipment
  • Tool kit

Special accessories

  • For work location
    Work center
    Work temporally locator
    Work carrying out device
    Work turn over device
    Auto loading /unloading system
    Work piece distinguisher
  • For mist coolant
    Mist coolant device
    Mist collector

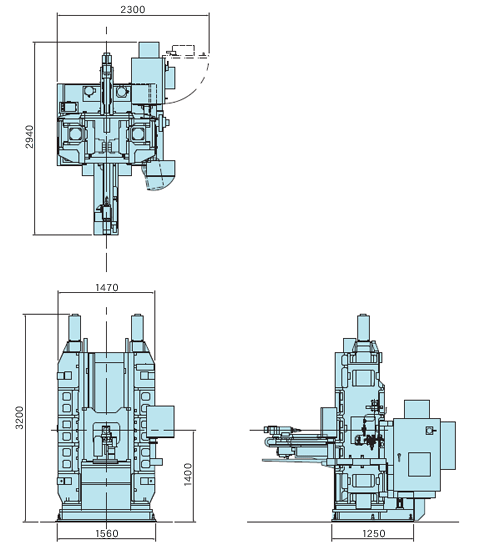

Machine dimensions (Units:mm)
