NACHI-FUJIKOSHI CORP.
Hydraulic Equipment
Main text
PCL Series Swing Motor
PCRSwing Motor
| Type | Maximum final displacement |
Maximum torque (Theoretical valve) |
Hydraulic motor maximum pressure |
Mass | Applicable shovel weight |
|---|---|---|---|---|---|
| cm3/rev | N m |
MPa | kg | ton | |
| PCL-25 | 174 | 255 | 17.7 | 18 | to 1.5 |
| PCL-50 | 275 | 618 | 20.6 | 28 | to 2.5 |
| PCL-120 | 391 | 1275 | 20.6 | 40 | to 4.5 |
| PCL-200 | 791 | 2099 | 20.6 | 60 | to 5.5 |

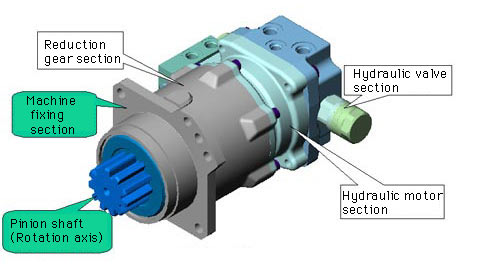

Structure
PCL-50
