PVD Series Piston Pump

  • Various pump sizes available from 1-ton to 6-ton shovel.
  • Internal drain type requiring no drain piping.
  • Constant horsepower control equipped as a standard function.

Pump size 00B 0B 1B 15B 2B 3B
Applicable shovel
(ton)
to 1.5 to 2.5 to 3.5 to 4.0 to 5.5 to 6.0
Capacity
(cm3/rev)
8 x 2 12 x 2 17 x 2 19 x 2 25 x 2 33 x 2
Maximum working pressure
(MPa)
24.5 24.5 24.5 24.5 24.5 24.5
Maximum number of rotations
(min-1)
2800 2800 2700 2600 2600 2400
Constant horsepower control Standard equipment

Options

  • Wide range of options matching various uses of the shovel.
Pump size 00B 0B 1B 15B 2B 3B
Constant horsepower control Standard equipment
Power shift (Total horsepower control)
Gear pump for high pressure
Gear pump for pilot

Power shift  Note: : Available as an option

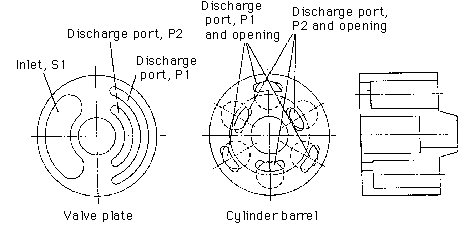

One pump discharges two equal amounts of flow.

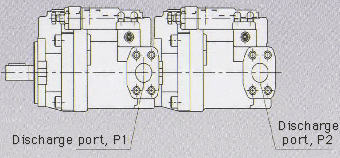

Conventional type (2 pumps connected)


PVD series (1 pump)
