G01 Modular Valve Series

G01 Modular Valve Series
External view of G01 modular stack block
  • High pressure and large capacity
    Maximum working pressure: 25,35 MPa
    Maximum flow: 50 L/min
  • Stacking system and bolt detaching system allows circuits to be configured, changed and added easily and immediately.
  • Compact size for reduced space
  • Decrease noise and Vibration due o reduced pipings
  • Various series and models; G01 size has 58 series and 131 models


Circuits can be configured easily and accurately since the nameplate on the valve shows the hydraulic symbols.

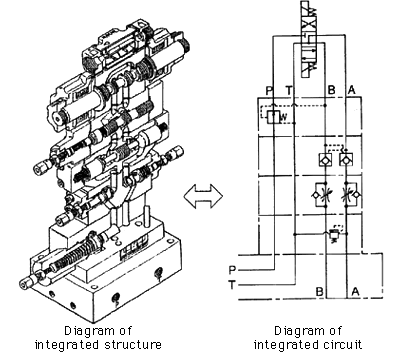

G01 Modular Valve Series Diagram of integrated, Diagram of integrated circuit
