SA Series Wet Type Solenoid Operated Directional Control Valve (G01)

ACSolenoid

SA-G01-A**-*-C*-31
SA-G01-H**-*-C*-31

Note : For SA-G01-H**-R**-31, the solenoid is located on the side (SOL a) opposite to that shown in the drawing.



AC Solenoid AC Solenoid



SA-G01-C**-R-C*-31
SA-G01-E**-R-C*-31


AC Solenoid

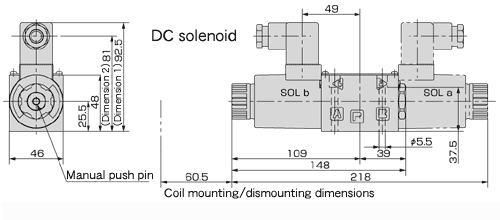

With DC solenoid and rectifier

SA-G01-A**-*-D*/E*-31
SA-G01-H**-*-D*/E*-31
SA-G01-C**-*-D*/E*-31
SA-G01-E**-*-D*/E*-31


With DC solenoid and rectifier

With DC solenoid and rectifier

A fixed throttle valve can be inserted into the ports P, A and B
(for both SS and SA types).


Notes : 1.For SA-G01-H**-*-D*/E*-31, the solenoid is located on the side(SOL a) opposite to that shown in the drawing.

2.For SA-G01-**-E*-31, the dimension 1 is 96mm, and dimension 2 is 73mm.


Sub-plate

Type E Max, working pressure
MPa {kgf/cm2}
Mass (kg)
MSA-01X-10 1/4 25 {255} 1.2
MSA-01Y-10 3/8 1.2

Gasket surface dimensions (ISO4401-03-02-0-94) , (JIS B 8355 D-03-02-0-94)

Note : If you want to use at a pressure of 25 MPa or more, please contact us.


Sub-plate
