Solenoid Valve

AC Solenoid valve

SS-G01-A**-R-C*-31
SS-G01-H**-R-C*-31

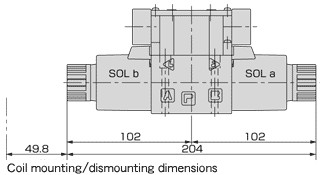

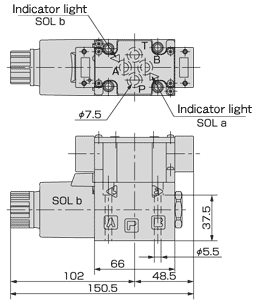

Note : For SS-G01-H**-R**-31, the solenoid is located on the side (SOL a) opposite to that shown in the drawing.

SS-G01-C**-R-C*-31
SS-G01-E**-R-C*-31

With DC solenoid and rectifier

SS-G01-A**-R-D/E*-31
SS-G01-H**-R-D/E*-31
SS-G01-C**-R-D/E*-31
SS-G01-E**-R-D/E*-31

A fixed throttle valve can be inserted into the ports P, A and B
(for both SS and SA types).

Notes : 1.For SA-G01-H**-*-D*/E*-31, the solenoid is located on the side(SOL a) opposite to that shown in the drawing.

2.For SA-G01-**-E*-31, the dimension 1 is 96mm, and dimension 2 is 73mm.

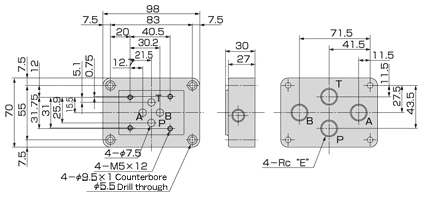

Sub-plate

Type	E	Max, working pressure MPa {kgf/cm2}	Mass (kg)
MSA-01X-10	1/4	25 {255}	1.2
MSA-01Y-10	3/8		1.2

Gasket surface dimensions (ISO4401-03-02-0-94) , (JIS B 8355 D-03-02-0-94)

Note : If you want to use at a pressure of 25 MPa or more, please contact us.
