HARD BROACHING MACHINE HW-5008

Main specifications

Max. pulling force (KN) 50
Max. stroke (mm) 800
Broaching speed (m/min) 1 to 60
Work Loading/Unloading Height (mm) 1,000
Floor space (W x D)
(mm x mm)
1,780 x 1,900
Machine height (mm) 3,400
Machine Weight (kg) 5,700

Standard accessories

· Mist coolant device
· Chip conveyer
· Sheet plate


Special accessories

· Auto loading system (Unloading system)
· Pull head
· Retrieving head

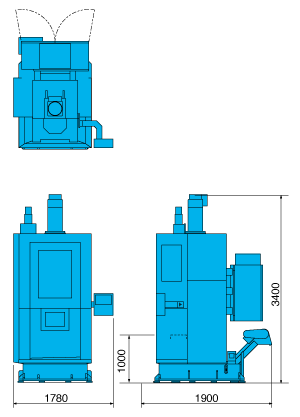

Machine dimensions

Unit:mm

Machine dimensions
