SMALL SIZE ROLL FORMING MACHINE PFM-330E


PFM-330E
Max. rolling dia. (mm) (Thread rolling up to M25) 20
Max. rack holder width (mm) 60
Max. rolling module m1.0
Max. rack length (mm) 346(13")
Opening section distance (mm) 90
Floor space (mm x mm) 800 x 1,650
Mass of Machine (kg) 2,000

Standard accessories

  • Lubrication unit
  • Tool kit

Special accessories

  • For work location
    Work center
    Work temporally locator
    Auto loading / unloading system

  • For tailstock
    Special stroke tailstock

  • For headstock
    Manual driven headstock
    equipment with special stroke
    NC headstock

  • For rack installation
    Forming rack liner

  • For mist coolant
    Mist coolant device
    Mist collector

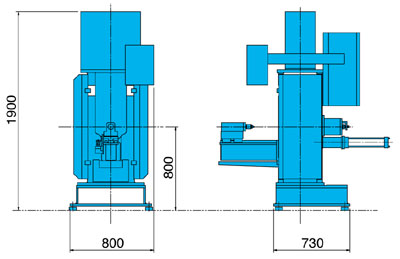

Machine dimensions Unit : mm

Machine dimensions
Machine dimensions
