AQUA Drill EX FLAT Oil-Hole

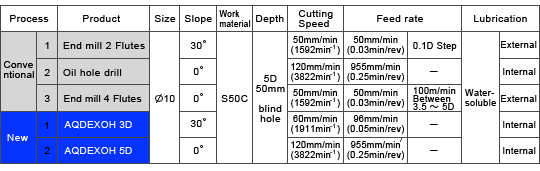

5D FLAT Oil Hole drilling on slope surface

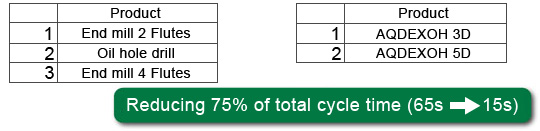

Conventional

New Process


Sequential drilling (45°Slope → Flat surface)

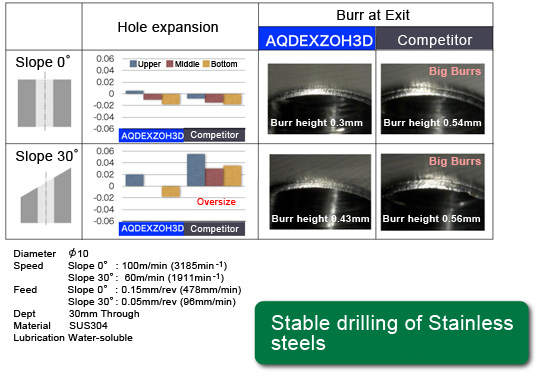

Through Hole Drilling of Stainless steels (SUS304)

Stable drilling of Stainless steels


Wear comparison after 720 holes drilling

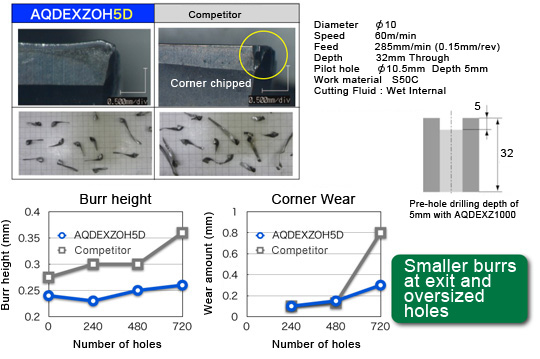

Smaller burrs at exit and oversized holes


Wear and chip comparison after 720 holes drilling

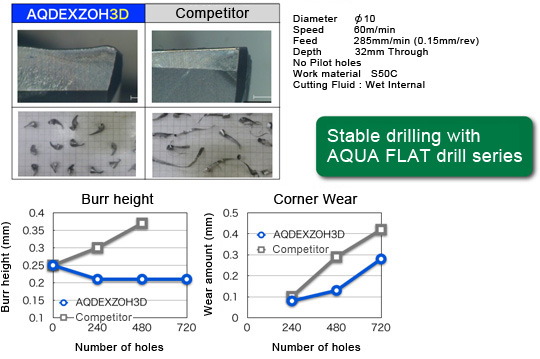

Stable drilling with AQUA FLAT drill series
