AQUA Drills EX FLAT Short
High precision hole processing sloped surface
Even up the feed speed, amount of positional deviation is small.
Suitable for drilling hole less than 1D.

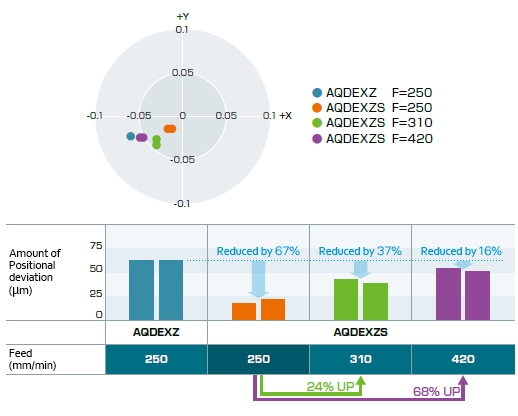

Comparison of positioning accuracy of each feed
Cutting condition |
||||||
|---|---|---|---|---|---|---|
| Tool Ø6 | Depth/Blind hole 9mm |
Water-soluble cutting oil | ||||
| Cutting speed 75m/min |
Work material S50C |
Sloped surface 30° |
||||
Compare machining life when drilling sloped surface
In overwhelming number of holes, suppression of the cutting edge wear.
| Cutting condition | ||||||
|---|---|---|---|---|---|---|
| Tool Ø6 | Depth/Blind hole 9mm | |||||
| Cutting speed 80m/min | Work material S50C | |||||
| Feed 260mm/min 0.062mm/rev | Water-soluble cutting oil | |||||
