X's mill Geo Ball

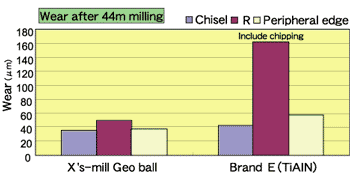

More than 3 times life Stable millng without any chipping
| End mill | Dia. | Speed | Feed | Material | Cut depth | Method | Machine |
| X's - mill Geo ball | R5 S2 |
314m/min (10,000min-1) |
2000mm/min (0.1mm / tooth) |
SKD61 (51HRC) |
aa=0.5mm pf=3mm |
3D DRY(air) |
MC BT40 |
| Brand E (TiAlN coated) |
 |
SDK 61 (51HRC)
Milling 15mm
aa=0.5mm pf=3mm |

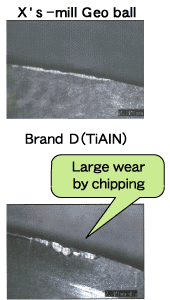

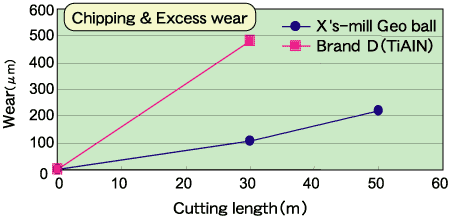

More than 4times life Stable milling without any chipping
| End mill | Dia. | Speed | Feed | Material | Depth | Method | Machine |
| X's - mill Geo ball | R5 S2 |
150m/min (4800min-1) |
960mm/min (0.1mm / tooth) |
SKD61 (60HRC) |
aa=0.5mm pf=0.5mm |
Dowm cut DRY(air) |
NC MC BT50 |
| Brand D (TiAlN) |

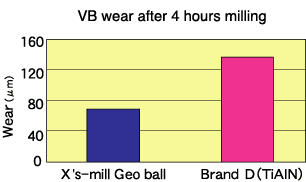

Comparison of VB wear
 |
More than 2 times life
| End mill | Dia. | Speed | Feed | Material | Cut depth | Method | Machine |
| X's - mill Geo ball | R5 S2 |
82m/min (2,600min-1) |
440mm/min (0.085mm / tooth) |
STAVAX |
aa=1mm pf=1mm |
Dowm cut Emulsion |
NC MC BT50 |
| Brand D (TiAlN) |
 |
 |
