X's mill Wavy Ball

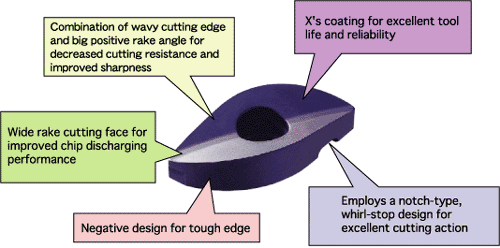

Feature of Wavy Chips




Strong clamp mechanism and low cutting resistance

Clamp mechanism   Comparison of cutting resistance

Working face A and B and whirl stopper C control the chip, which moves outwards by means of the cutting force, thereby stabilizing the cutting.


Material : S50C, Tool :XSWBMR2250S
Chip : ZNMT2205125-CN, ZNMT2305125-SN (XSZ350)
Cutting conditions : V = 200m/min.
f = 0.15mm/blade
aa = 5mm, ar = 5mm
Shoulder milling
(down cutting)
