Cutting Tools

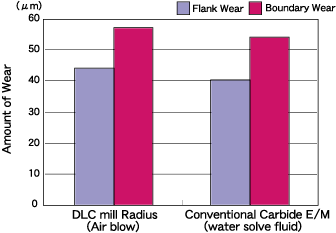

Comparison of Wear

Small Wear in Dry cutting!!

Conditions
End Mill	:	9mm
Speed	:	572m/min(20,000min^-1)
Feed	:	6,000mm/min(0.15mm/tooth)
Material	:	ADC12
Coolant	:	DLC mill Radius(Air blow) Carbide E/M(water soluble fluid)
Milling length	:	40m

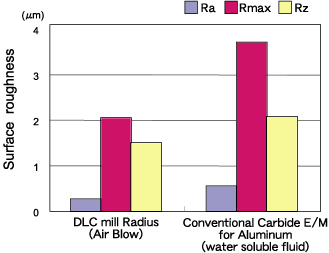

Comparison of surface roughness

Excellent surface roughness in dry cutting

Rough

(Finishing stock)

Conditions
End Mill		:	9mm
Rough
Speed		:	286m/min (10,000min^-1)
Feed		:	500mm/min (0.025mm/t)
Finish
Speed		:	286m/min (10,000min^-1)
Feed		:	3,000mm/min (0.15mm/t)
Coolant		:	DLC mill Radius (dry) Carbide E/M (water soluble fluid)
	Milling Length	:	0.4m
