SG Point Taps

Excellent wear and chipping resistance

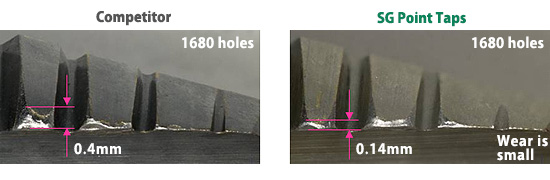

Comparison of wear

Cutting condition
Thread size : M6 x 1   Drill hole Dia. : Ø5.1
Work material : S50C (180HB)   Drill hole depth : 13mm(Through holes)
Thread depth : 12mm   Cutting Fluid : Water-soluble cutting fluid
(External coolant)
Cutting speed : 30m/min

Stable cutting screw threads by excellent wear and chipping resistance

Improve wear resistance and toughness by using fine multilayer film
