SG Spiral Taps Short Chamfer

Optimization shape of chamfer can make tool life longer

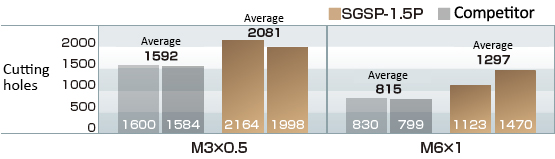

Cutting performance of Short Chamfer (SGSP-1.5P)

Cutting holes

M3x0.5 Wear After 1600 holes M6x1 Wear After 630 holes
Competitor SGSP-1.5P Competitor SGSP-1.5P
Cutting condition
Thread size Thread depth Drill Hole Dia Cutting speed Feed Rotation Work Material Cutting Fluid Machine
M3x0.5 6mm Ø2.6
(Blind holes)
30m/min 1590mm/min 3180min-1 S50C
(180HB)
Water-soluble cutting fluid (External coolant) Vertical Machining Center BT30
M6x1 12mm Ø5.1
(Blind holes)
1591mm/min 1591min-1 Vertical Machining Center HSK63

Securement of thin thickness and effective screw length are compatible, in combination with Flat drill

The minimum of a thickness part by using Flat drill

The maximum of effective screw length by using Short Chamfer screw threads

AQUA Drill EX Flat
