Skiving machining center for Gears GMS200

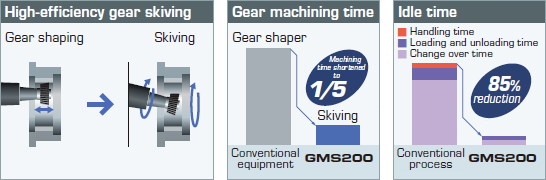

High-efficiency gear skiving and integrated process
remarkably reduce machining time

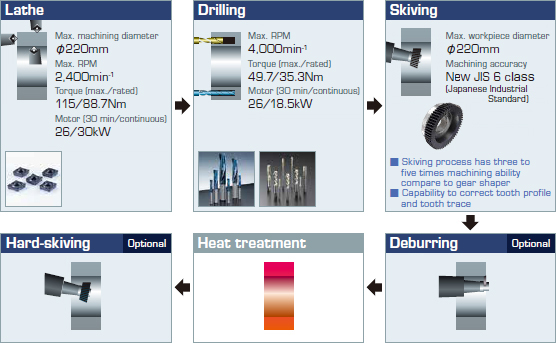

Multiple process in one machine

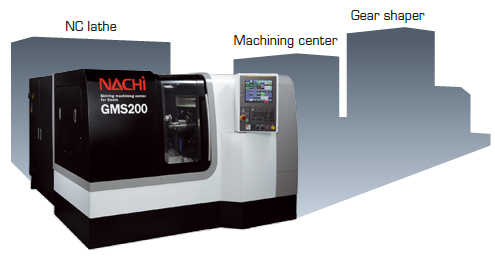

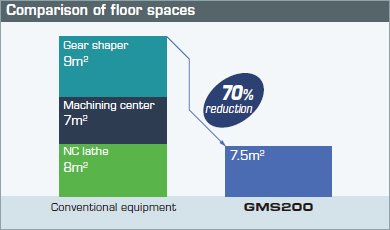

To achieve compact production lines by reducing floor space
with 3 roles in 1 machine
Superior workability and operability

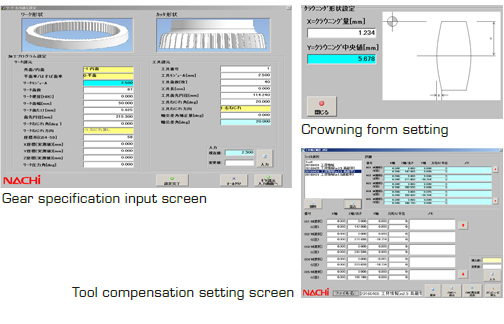

Interactive operation screen for skiving (optional)
- Crowning process and run-in amount modification function (initial mode)
- Newly added tool compensation setting and workpiece coordinate system preset
All machining conditions for skiving can be set
Ceiling opening door
- Aperture dimension : 600mm
- Easy access to jig and simple loading & unloading of workpieces
- Workpiece installation
height : 1,170mm
Reduced machine height for better view
- Contribute to environment improvement in factory
The design for auto loading system with robots
Machining application
Internal gear
External gear
Spline
Skiving cutter for hard-skiving
- Achieved high precision of workpieces after heat treatment
- The design reduces noise from reducer
- NACHI's original DuAl Hard coating for hard skiving
- Stable machining without rake face coating
Combine with NACHI robots
Combine with NACHI robots for auto loading system
MZ04
EZ03
MZ12
