Skiving machining center for Gears GMS200

Main specification

Machining capacity Max. workpiece diameter mm Ø220
Gear cutting tool Skiving cutter
Cutter spindle Spindle taper hole
(tool shank type)
KM6350
Max. RPM of spindle min-1 4000
Motor (30 min/continuous) kw 26/18.5
Workpiece spindle Max. RPM of spindle min-1 2400
Motor (30 min/continuous) kw 26/30
Each unit traverse Left-Right traverse (X-axis) mm 500
Forward-Back traverse (Y-axis) mm 200
Up-Down traverse (Z-axis) mm 300
Tool swivel angle (B-axis) deg ±45
A.T.C. Number of tool storage piece 6
Max. tool diameter mm Ø120
Max. tool length mm 240
Tool selection method Tool storage position fixed/random
NC device Type FANUC 31i-B
Display FANUC 15" touch panel
Utilities Overall power used kVA 74
Dimensions of machine Machine height mm 1680
Required floor space
(width × depth)
mm 2500 × 3000
Net machine weight kg 7000

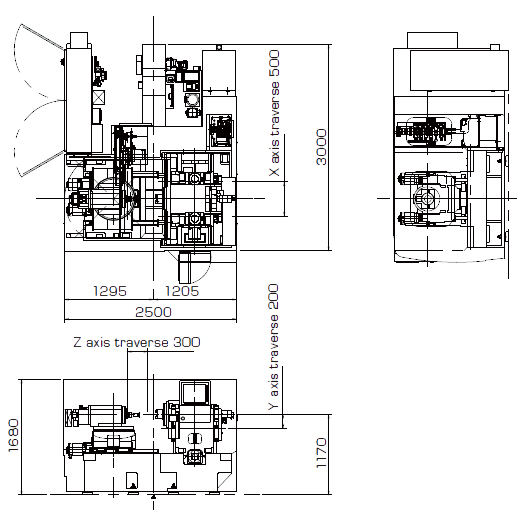

Layout diagram

Layout diagram
