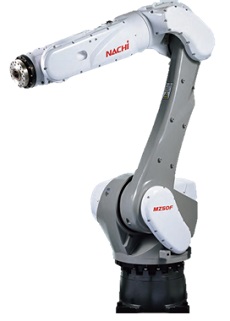

MZ Medium Payload Robot MZ35F/50F/70F

MZ35F/50F/70F

Lightweight and slim body

  • Space-saving with a lightweight and slim body.
    Compared to the previous model, the main body weight is reduced by 5% and the installation area is reduced by 23%.
    IP67 equivalent for the main body is standard specification, expanding the range of applications.

Hollow wrist

  • Hollow wrist structure allows cables to be run through the wrist for improved convenience in handling wiring and tubing around the wrist.

High speed and High precision

  • It is faster and more accurate than conventional machines, contributing to improved productivity.

Lightweight and slim body

    The lighter weight of the main unit (body weight compared to conventional models: -5%) and compactness (installation area compared to conventional models: -23%) makes it easier to consider peripheral equipment.
    7 equivalent for the main body is standard specification, expanding the range of applications.
    It can be used with confidence even in harsh environments where chips and coolant are scattered.

Our conventional machine MZ medium payload Conventional model comparison
Robot weight 640kg 608kg -5%
Installation area 286.4 thousand mm2 220.5 thousand mm2 -23%

ˇApplication examples

Polishing, Deburring

Bad condition
where cutting chips are splashing

Machine loading

Bad condition
where coolant is splashing



















Hollow wrist

Interference is avoided by routing wiring through the hollow wrist.

Flexible operation even in narrow spaces.















High speed and High precision

    The high-rigidity design improves operating speed and position repeatability compared to previous models.
    Contributes to improved productivity.

Our conventional machine MZ medium payload
Maximum Velocity J1 180°/s 185°/s
J2 180°/s 180°/s
J3 180°/s 185°/s
J4 255°/s 260°/s
J5 255°/s 260°/s
J6 370°/s 370°/s

Catalog Download


PDF ·MZ35F/50F/70F (2pages/374KB)
