SRA series SRA100B/100J

Compact × High Performance

Exterior dimensions and working envelope

SRA100B-01

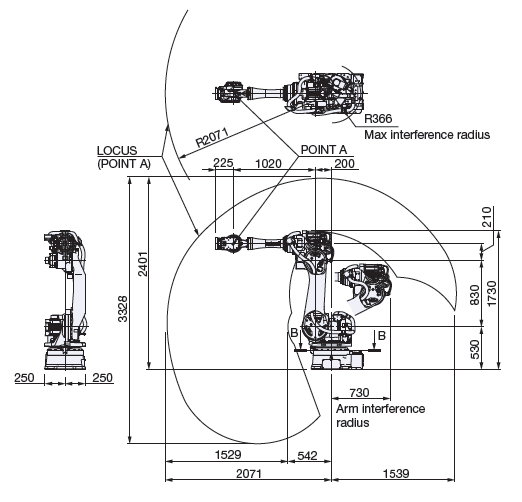

SRA100B-01 Exterior dimensions and working envelope

SRA100J-01

SRA100J-01 Exterior dimensions and working envelope

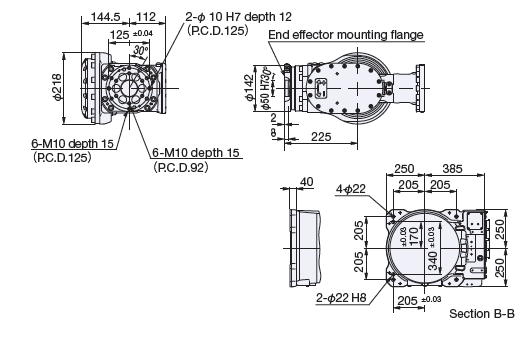

Details of wrist attachment (same for SRA100B and SRA100J)

Details of wrist attachment (same for SRA100B and SRA100J)


(*1) The specifications are subject to changes without notice.
(*2) In case that an end user uses this product for military purpose or production of weapon, this product may be liable for the subject of export restriction stipulated in the Foreign Exchange and Foreign Trade Law. Please go through careful investigation and necessary formalities for export.
