SRA series SRA100HS/SRA100HB

Spot welding robot with built-in cables

Exterior dimensions and operating envelope

SRA100HS-01

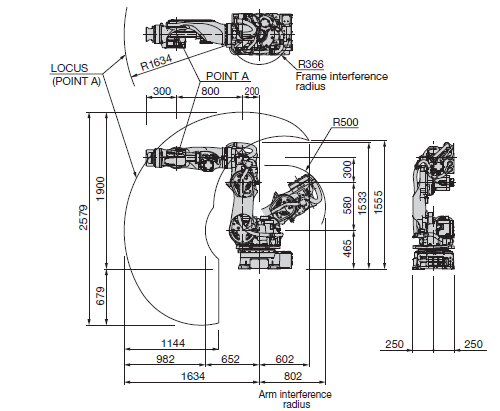

Exterior dimensions and operating envelope SRA100HS-01

SRA100HB-01

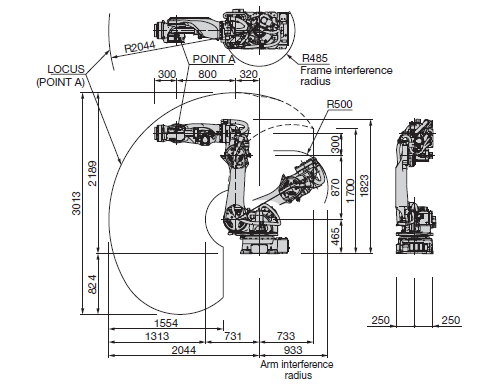

Exterior dimensions and operating envelope SRA100HB-01

(*1) The specifications are subject to changes without notice.
(*2) In case that an end user uses this product for military purpose or production of weapon, this product may be liable for the subject of export restriction stipulated in the Foreign Exchange and Foreign Trade Act. Please go through careful investigation and necessary formalities for export.
