Market field / Construction machines

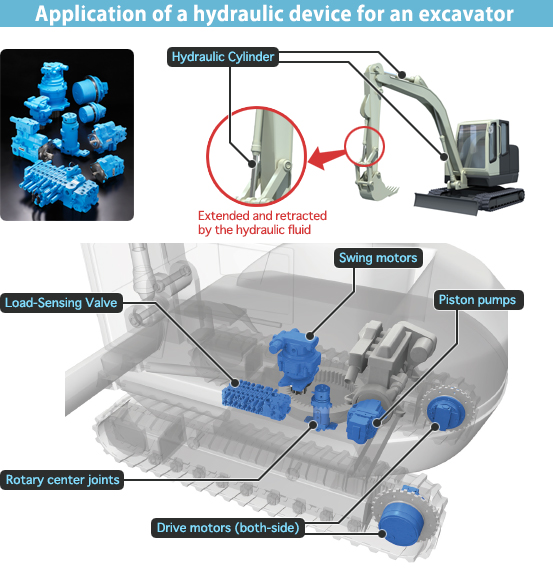

Piston pumps Drive motors(both-side) Drive motors(both-side) Load-Sensing Valve Swing motors Rotary center joints

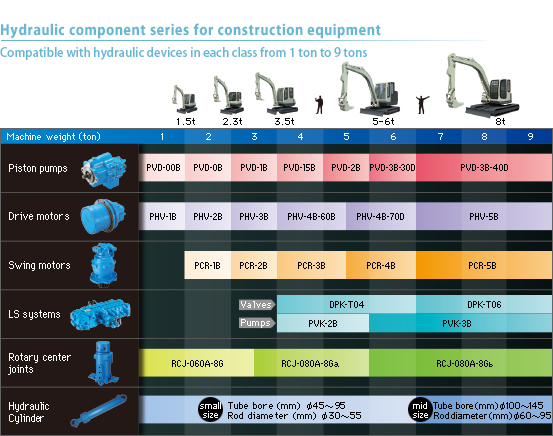

Note: The ton capacities of the shovels shown above are only a guideline, actual machine specifications will differ.

Piston Pump | Solenoid Valve | Traversing Motor | Load Sensing Valve | Swing Motor | Rotary Center joint

Piston Pump

PVD Series Piston Pump

PVD Series Piston Pump
  • One pump discharges two equal amounts of flow to ensure shovel straightness.
  • Constant horsepower control with full use of engine horsepower, resulting in increased speed and power for mother machine.
  • Compact size enables installation in a small engine room.
Details

PVK Series Piston Pump

PVK Series Piston Pump
  • Constant horsepower control with full use of engine horsepower, resulting in increased speed and power for mother machine.
  • Load sensing control can be achieved with our DPK load sensing valve, resulting in energy savings for mother machine.
  • Compact size enables installation in a small engine room.
Details

Piston Pump | Solenoid Valve | Traversing Motor | Load Sensing Valve | Swing Motor | Rotary Center joint

Solenoid Valve

SA Series Wet Type Solenoid Operated Directional Control Valve (G03)

SA Series Wet Type Solenoid Operated Directional Control Valve (G03)
  • Highly reliable wet solenoid structure
  • DIN connector type for highly waterproof performance JIS C 0920 IP65
  • Shockless type also available to prevent shock when switching
  • Coil can rotate by 360°. Can be mounted even in a small space.
Details

SA Series Wet Type Solenoid Operated Directional Control Valve (G01)

SA Series Wet Type Solenoid Operated Directional Control Valve (G01)
  • Recognized by reliable overseas safety standards such as CE (Europe), UL (U.S.A.) and CSA (Canada).
  • The power consumption of the DC solenoid (D* and E*) is reduced. This will further promote your energy saving policy.
  • An innovative fluid reaction compensating mechanism assures reliable valve switching. (Patent pending)
Details

SK Series Wet Type Solenoid Operated Directional Control

SK Series Wet Type Solenoid Operated Directional Control
  • Highly waterproof
    JIS C 0920 IP67
    JIS D 0203 D2
  • High allowable back
    Pressure 21MPa
  • A surge-killer diode built-in type also available
  • Correspond to a wide variety of connectors
Details

Piston Pump | Solenoid Valve | Traversing Motor | Load Sensing Valve | Swing Motor | Rotary Center joint

Traveling Motor

PHV Series 2-Speed Wheel Motor

PHV Series 2-Speed Wheel Motor
  • Compact size
    Integrated structure consisting of hydraulic motor, hydraulic valve and reduction gear enables smooth motion.
  • High-speed movement
    Employs a 2-speed hydraulic motor for increased traveling speed Applicable for a wide range of uses from powerful operation to high-speed movement
  • Smooth stopping performance
    Built-in brake valve for stable stopping performance
  • Rich variety of options
    Options include a parking brake and shockless relief to enhance starting/stopping performance.
Details

Piston Pump | Solenoid Valve | Traversing Motor | Load Sensing Valve | Swing Motor | Rotary Center joint

Load Sensing Valve

Load Sensing Valve

Load Sensing Valve

Provides all functions required for shovel

  • Anti-saturation function
  • Self-load pressure-dependent pressure compensating valve
  • Interconnected control for engine rotation speed
  • No need for traversing-independent pump
  • LS control + constant horsepower control
  • Good travelling straightness
  • Good for straight traveling
  • Various kinds of attached valves
Details

Piston Pump | Solenoid Valve | Traversing Motor | Load Sensing Valve | Swing Motor | Rotary Center joint

Swing Motor

PCR Series Swing motor

PCR Series Swing motor
  • Improved arrangement of components and decreased height enable installation under the driver's seat.
  • No need for gear oil replacement.
  • Parking brake can be built into the hydraulic motor, enabling safer parking on an incline.
  • Shockless relief is standard equipment to enable smooth Swing.
Details

Piston Pump | Solenoid Valve | Traversing Motor | Load Sensing Valve | Swing Motor | Rotary Center joint

Rotary Center joint

RCJ series Rotary center joint (RCJ-060A-10)

PCR Series Swing motor
  • A port arrangement that makes piping easy.
  • A structure that is resistant to earth and sand.
  • Small rotation torque.
  • Smooth rotation .
Details
