SE Series Low-Power Solenoid Valve (SE-G01)

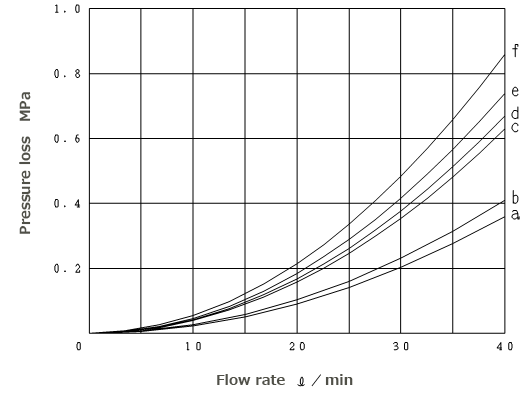

Pressure loss characteristics

Hydraulic oil viscosity 32mm2/s

Pressure loss characteristics


Flow channel format P→A P→B A→T B→T P→T
A2X d f
A3X f f e e
E3X c c e e
C4 b b b b d
C5 e e d d -
C6 f f a a
