MC series MC20/MC10L

"Powerful & Compact" Robot for various manufacturing processes

Operating envelope

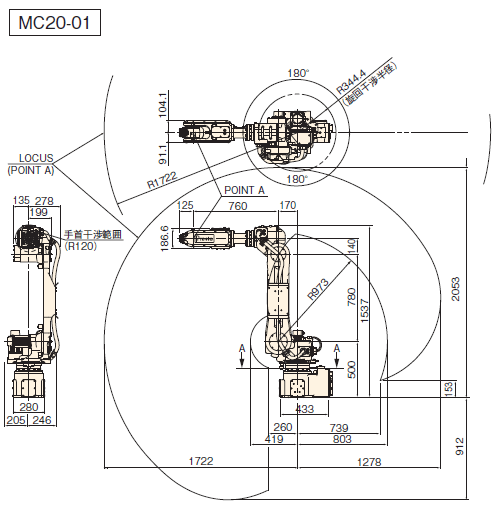

Operating envelope MC20

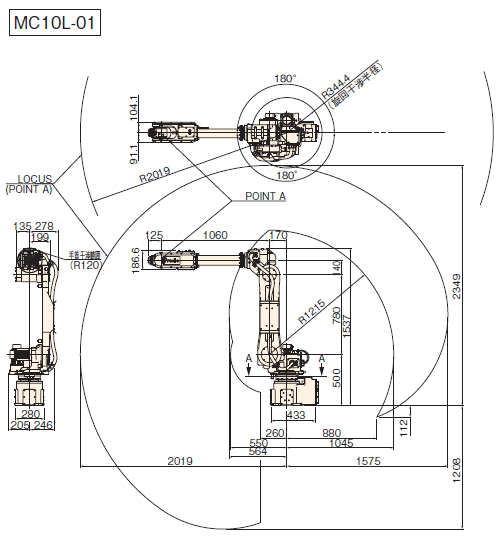

Operating envelope MC10L

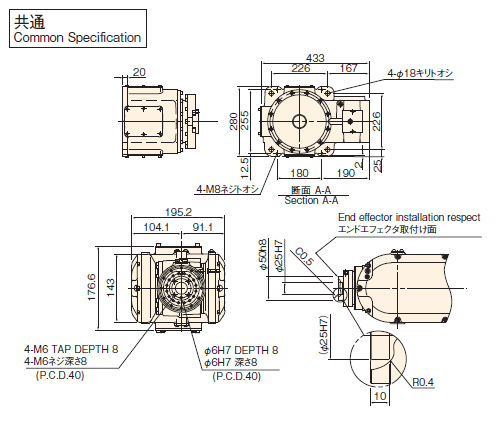

Operating envelope MC20/10L Common Specification

(*1) The specifications are subject to changes without notice.
(*2) In case that an end user uses this product for military purpose or production of weapon, this product may be liable for the subject of export restriction stipulated in the Foreign Exchange and Foreign Trade Law. Please go through careful investigation and necessary formalities for export.
