NACHI Handling Robot MZ04/MZ04E : Compact and super fast robot
Robots
Main text
Compact and super fast robot MZ04/MZ04E

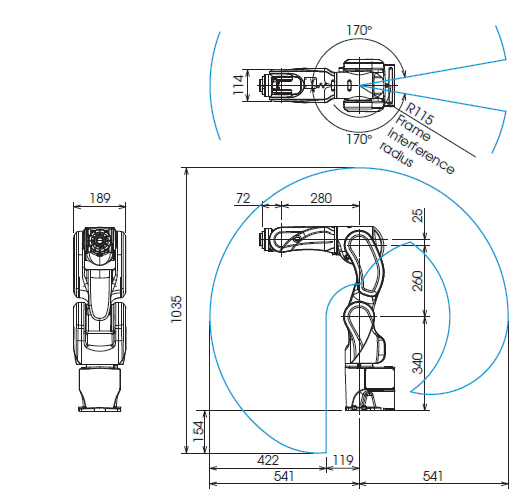

Robot dimensions and Working envelope

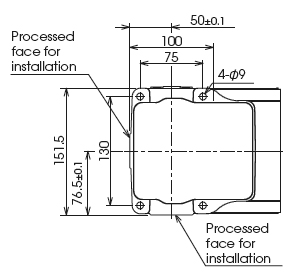

Robot base dimensions diagram

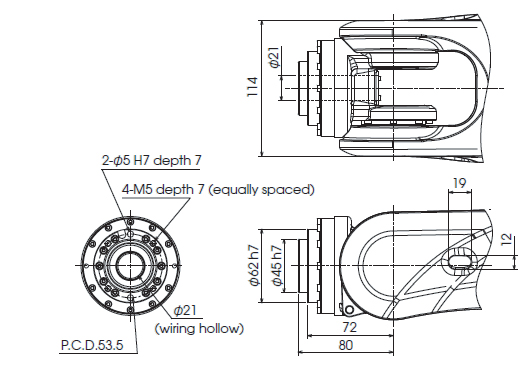

Detail of wrist
(*1) The specifications are subject to changes without notice.
(*2) In case that an end user uses this product for military purpose or production of weapon, this product may be liable for the subject of export restriction stipulated
in the Foreign Exchange and Foreign Trade Control Law. Please go through careful investigation and necessary formalities for export.
