NACHI Handling Robot MZ12H : Multipurpose robot

Robots

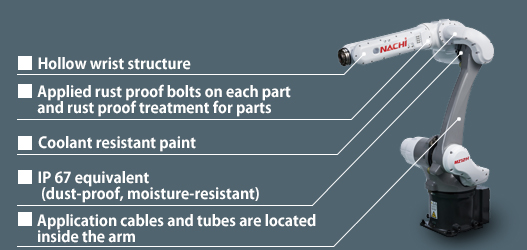

Fully enclosed robot body and wrist.
Supports various applications with IP 67 equivalent,rust proof.
Achieves high speed & precise motion control through weight reduction. Improved rigidty Increases productivity.
Integrated valves in the arm and smart cable and hose routing through the hollow wrist.
Minimizes interference and wear.
Flexible system designs possible utilising the wide working envelope.
Large wrist torque supports large and heavy tooling and work pieces.
Integrated wiring at the wrist for 7th axis & ethernet.
Neat cable and hose routing.

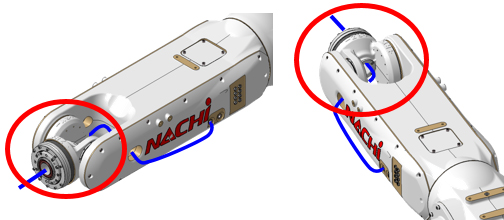

Hollow wrist structure

Integrated valves in the arm and smart cable and hose routing through the hollow wrist.
Minimizes interference and wear.

Application example

Applicable to bad condition such as that dust and water drop is splashing.
(Protection class IP67 equivalent)

Built-in wiring and tubing enables the application utilizing big flow rate air blow.

Polishing, Deburring

Bad condition where cutting chips
are splashing

Machine loading

Bad condition where coolant is splashing
