ST series ST210TP
Press tending robot

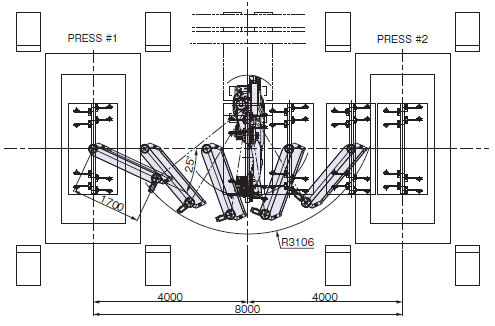

Layout sample
![Layout sample](img/st210b_1.gif)

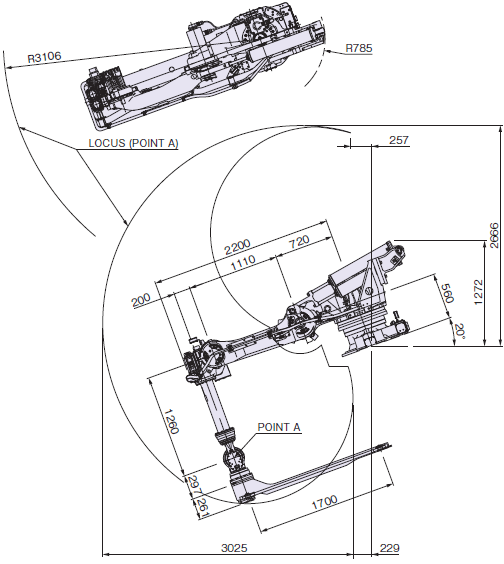

Exterior dimensions and operating envelope
![Exterior dimensions and operating envelope](img/st210b_2.gif)

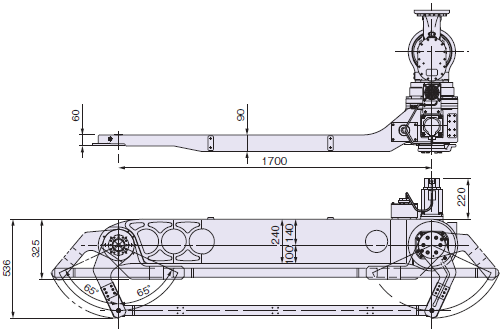

Swivel arm for press tending
![Swivel arm for press tending](img/st210b_3.gif)
(*1) The specifications are subject to changes without notice.
(*2) In case that an end user uses this product for military purpose or production of weapon, this product may be liable for the subject of export restriction stipulated in the Foreign Exchange and Foreign Trade Law. Please go through careful investigation and necessary formalities for export.
