AQUA Drill EX 3 Flutes Regular

Handles drilling up to a depth of 5D

Optimized flute geometry and cutting-edge design improve chip fragmentation and evacuation for stable drilling

Comparison after drilling 1,600 holes in S50C

After 1,600 holes Chip
AQDEX3FR
Equivalent competitor product

Conditions
Drill dia. : Ø6 Work material : S50C (180HB)
Speed : 70m/min Coolant : Water-soluble coolant
Feed : 670mm/min Drilling depth : 30mm Step 6mm

High-accuracy drilling of SCM440H (32HRC)

Achieves high-accuracy drilling up to a depth of 5D

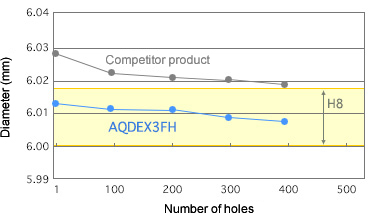

Drilling accuracy

Conditions
Drill dia. : Ø6 Coolant : Water-soluble coolant
Speed : 20m/min Drilling depth : 18mm
Feed : 80mm/min Through : Non-step
Work material : SKD11 (60HRC)
