Crystal Diamond Coated Drills
Features

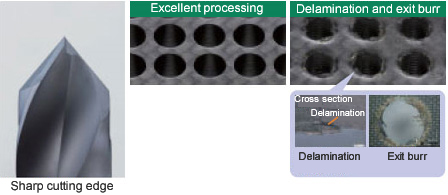

A cutting edge design that minimizes cutting resistance
Sharp cutting edge that ensures a clean cut through carbon fiber
Cutting resistance is minimized to help prevent CFRP delamination and exit burring

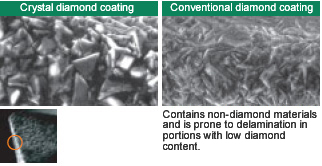

Crystal diamond coating with increased crystallinity
Newly developed crystal diamond coating offers improved wear resistance and a longer tool life, made possible by increasing the crystallinity
CFRP machining comparison

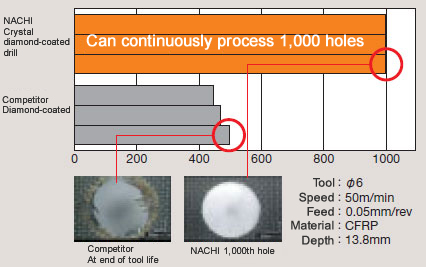

Tool life comparison
Number of holes until delamination (0.5 mm) occurs

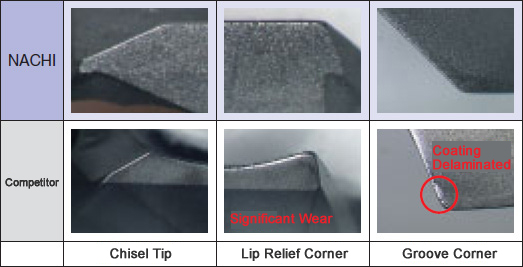

Wear comparison
Wear after 1,120 holes (NACHI) 350 holes (Competitor)
