X's mill Geo Microball

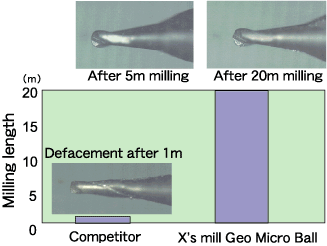

Toughness of X's mill Geo Micro Ball LIST9332


Conditions
End mill : R0.1
Speed : 25m/min
Feed : 160mm/min
Material : 40CrMoV5 (51HRC)
SKD61
Coolant : DRY

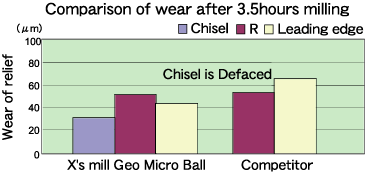

Toughness of X's mill Geo Micro Ball LIST9332


Conditions
End mill : R0.3
Speed : 45m/min
Feed : 317mm/min
Material : 40CrMoV5 (51HRC)
SKD61
Coolant : DRY

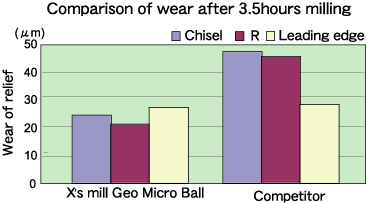

Toughness of X's mill Geo Micro Ball long neck LIST9334
Conditions
End mill : R0.5
Speed : 74m/min
Feed : 240mm/min
Material : 40CrMoV5 (51HRC)
SKD61
Coolant : DRY
