DLC Coated Inserts

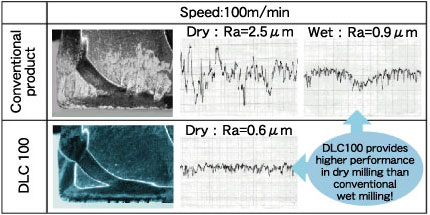

Performance for dry milling

Dry milling provides performance equivalent to conventional wet milling.


Conditions
End mill : 32mm(XSWEM3032E)
Speed : 100m/min (1,000min-1)
Feed : 600mm/min (0.2mm/tooth)
Material : ADC12
Coolant : Air blow
Milling length : 10m

Performance for A5052 material milling


Conditions
End mill : 32mm(XSWEM3032E)
Speed : 300m/min (3,000min-1)
Feed : 1,350mm/min (0.15mm/tooth)
Material : A5052
Coolant : Air blow
Milling length : 35m
