GSX MILL VL Long Shank

GSX MILL VL Long Shank Vertical wall milling up to 5D height
  • Well-balanced sharpness and rigidity realize high efficient and high precision milling for vertical walls.
Endmill with unequal tooth spacing and variable leads
  • Periodicity of cutting stress is effectively suppressed by continuously changing outer teeth spacing, allowing for chattering control.

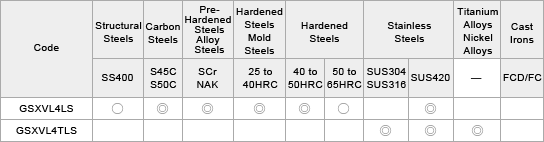

For titanium alloy and SUS and for steels
  • There are two types, for steels and for titanium alloy and SUS that support almost any work materials.
GSX II coating
  • With the multi-layer of heat resistance coating and hard coating, GSX MILL VL supports cutting of hardened materials. With high wear resistance and anti-adhesion properties, stable chip removal is realized for a wide range of work materials.
Additional release of the radius model
  • The radius model was added to the steel type and the titanium alloy and SUS type.

    Radius
