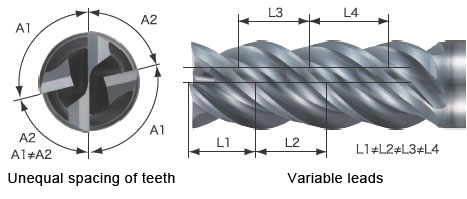

Unequal spacing of teeth · Variable leads

Reduce vibration and realize high quality milling by adapting unequal index and lead design.

GSX MILL VL Anti-Vibration Effect (Movie)

Conventional 4 Flutes End mill

GSX MILL VL

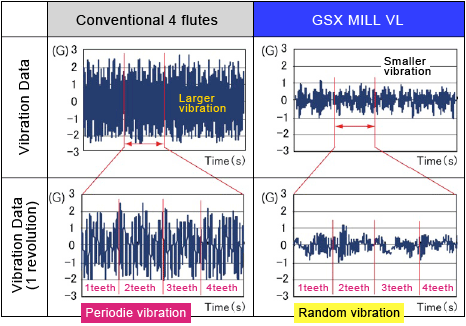

Comparison of vibration

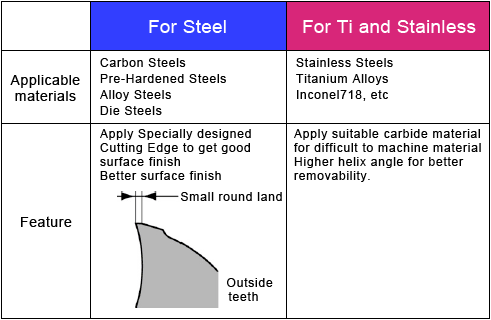

Applicable to wide range of materials by two series

GSX-II Coating

Excellent heat resistance Achieve high heat Resistance with Al-rich composition. Multi layer structure High hardness of coating in according to multi layer structure with AlCr and AlCrX. Crystal structure Great wear and resistance with optimum crystal structure.

Evaluation of oxidation resistance
Status of coating films after keeping with 1,100°C in the air after 1 hour.

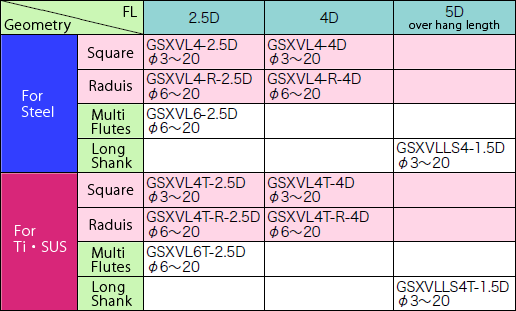

GSX MILL VL Series
