POWER Fit

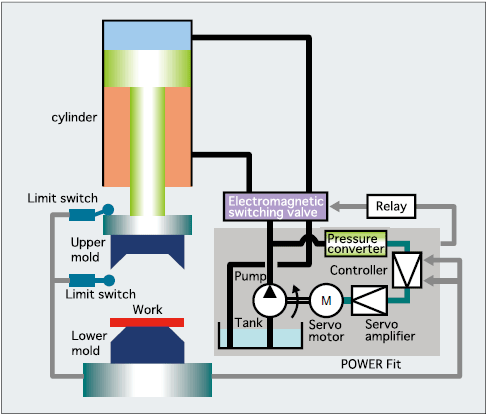

Briefing (for when applying to stamping presses)

  • It can be used to replace a conventional hydraulic unit.
  • The operating direction of the cylinder is switched using an electromagnetic switching valve.
  • Cylinder velocity (flow) and load (pressure) can be controlled at will using the controller.
    (Valves for velocity control and pressure control are not needed.)
  • The controller automatically switches between flow control and pressure control in accordance with the loading state.
  • The unit can output an external signal (open collector signal) in tandem with flow and pressure commands. It can switch the electromagnetic switching valve, etc. in tandem with the commands.

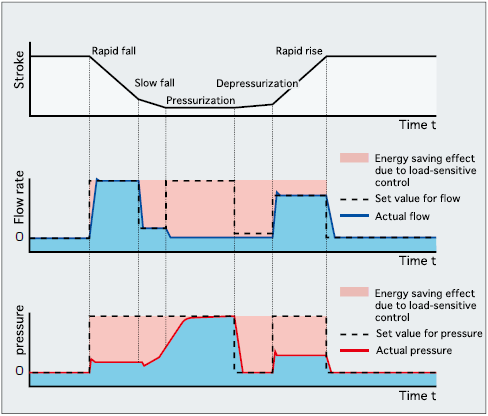

press operation pattern
