Plummer Block Housing
■Plummer Block Housing
- Plummer Block housings easily constitute bearing units by combining them with self-aligning ball bearings or spherical roller bearings.
- Accuracy, strength, and rigidity are improved by NACHI original design.
- Wide range of sizes and configurations
- Lightweight and high strength by the optimal design
- By use of tapered bore bearing and adapter. the bearings can be mounted at any selected shaft position.
- For stepped shaft. the bearings with cylindrical bore are fixed by shaft nut.

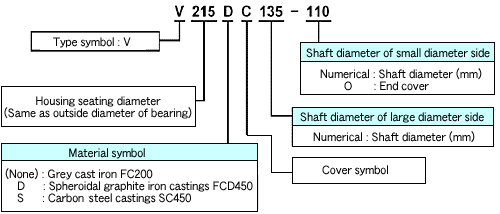

Dimension Table
●One piece type Plummer Block Housings
V, For tapered bore bearings with adapterShaft Diameter 30 - 200mm
Split-housings
(Remark)
1. When symbol are omitted. shift to left side.
2. Threads and number of grease inlet/outlet are shown in tables.
3. Grease nipple A type is attached at grease inlet.
One-piece housings
(Remark)
1. When symbol are omitted. shift to left side.
2. Supplementary symbols accord with split housing
3. Threads and number of oil inlet/outlet are shown in tables.
4. Grease nipple of button-head type is attached at grease inlet.
Locating Rings
Locating ring for fixed side housing is identified as follows.
locating ring should be prepared besides plummer block housings.
The dimension table show the designation and number of ring required for each bearing.
