Machine Tools
Skiving machining center for Gears
■Skiving machining center for Gears GMS200
●General purpose·Compact
Multi-function machine to include skiving function
- Best for gear machining for automotive parts
- Compact equipment with flexibility to cope with the various kinds of small quantity production and multiple processes
- Hard-skiving achieves high-precision machining of hardened gears
- Interactive operation screen provides excellent man-machine interface
High-efficiency gear skiving and integrated process remarkably reduce machining time
Multiple process in one machine
To achieve compact production lines by reducing floor space with 3 roles in 1 machine
Superior workability and operability
●Interactive operation screen for skiving (optional)
- Crowning process and run-in amount modification function (initial mode)
- Newly added tool compensation setting and workpiece coordinate system preset All machining conditions for skiving can be set
●Ceiling opening door
- Aperture dimension : 600mm
- Easy access to jig and simple loading & unloading of workpieces
- Workpiece installation
height : 1.170mm
●Reduced machine height for better view
○ Contribute to environment improvement in factory
The design for auto loading system with robots
Machining application
Skiving cutter for hard-skiving
- Achieved high precision of workpieces after heat treatment
- The design reduces noise from reducer
- NACHI's original DuAl Hard coating for hard skiving
- Stable machining without rake face coating

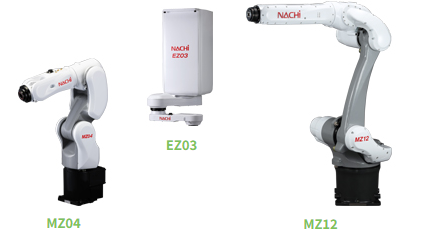

Combine with NACHI robots for auto loading system
Main specification
Layout diagram
Product line-up for ring gear machining
Integrate three jobs on one machine (48sec)
Achieved compact and space saving body (40sec)
ATC (19sec)
●Integrate three jobs on one machine (48sec)
Options (16sec)
●Achieved compact and space saving body (40sec)
Full-size (4min42sec)
●ATC (19sec)
