■10kg Payload Long Reach SCARA Robot EC10
Responds to increase in workpiece weight
- Rated 5kg, Maximum 10kg, conditional 12kg to compatible.
Long reach
- 800/1,000mm long reach.
The length of the vertical axis can be selected
- Selectable from 200/300mm.
Hollow wrist
- By adopting a hollow shaft, simplified wiring from the robot body to the tool is possible. Achieves reduction of equipment layout.
4 types of lineup ~ By maximum reach and vertical stroke ~
Can choose from Maximum Reach 800/1,000mm, Vertical axis length 200/300mm. Rated 5kg, Maximum 10kg, conditional 12kg to accommodate increased workpiece weight.
Hollow wrist
Adopting a hollow shaft, simplifies wiring from the robot body to various tools. Avoids interference with peripheral equipment and realizes a more compact equipment layout.

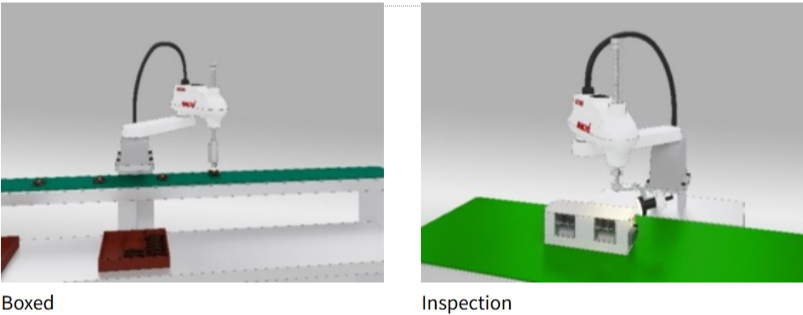

Application examples

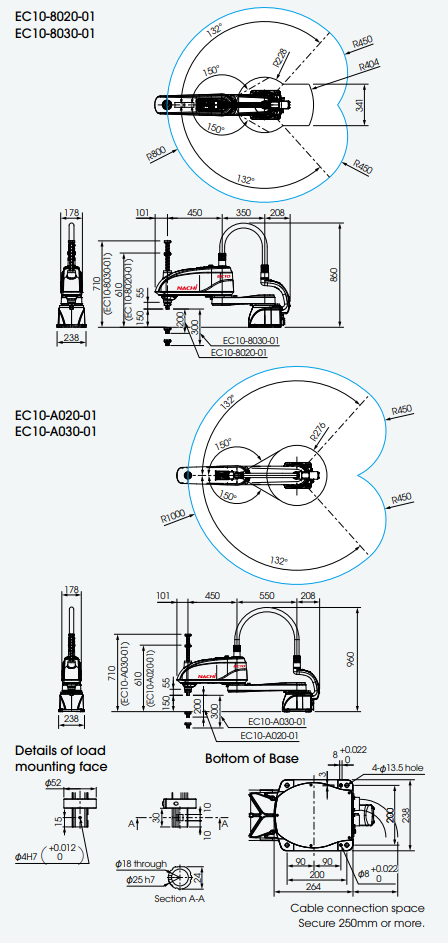

Robot dimensions and operating range
(*1) The specifications are subject to changes without notice.
(*2) In case that an end user uses this product for military purpose or production of weapon. this product may be liable for the subject of export restriction stipulated in the Foreign Exchange and Foreign Trade Control Law. Please go through careful investigation and necessary formalities for export.
Basic specification of robot
