■MZ Medium Payload Robot MZ35F/50F/70F/50LF
High speed and High precision
It is faster and more accurate than conventional machines. contributing to improved productivity.

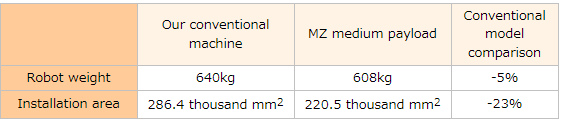

Lightweight and slim body
The lighter weight of the main unit (body weight compared to conventional models: -5%) and compactness (installation area compared to conventional models: -23%) makes it easier to consider peripheral equipment.7 equivalent for the main body is standard specification. expanding the range of applications.It can be used with confidence even in harsh environments where chips and coolant are scattered.

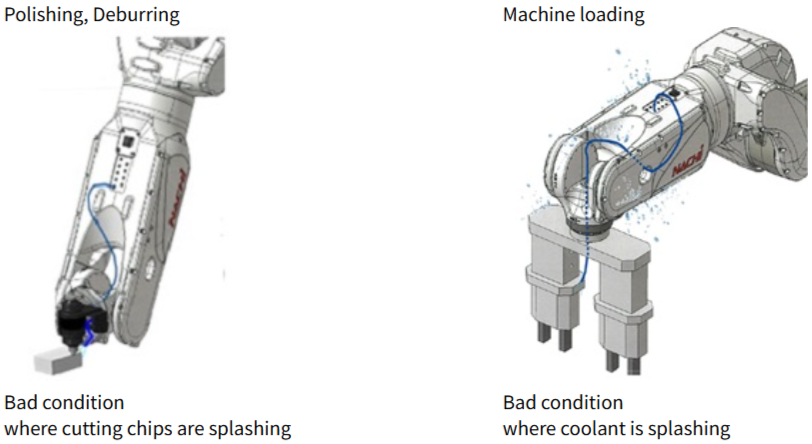

Application examples
Polishing. Deburring
Machine loading
Bad conditionwhere cutting chips are splashing
Bad conditionwhere coolant is splashing

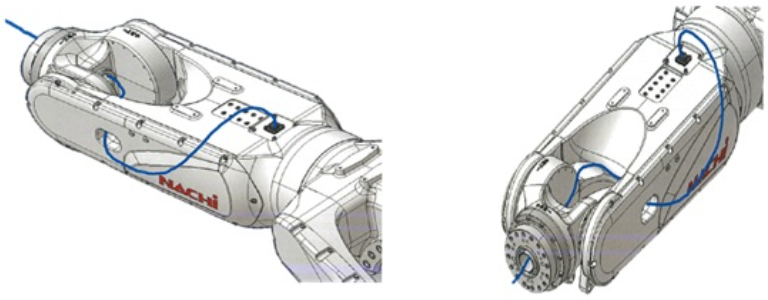

Hollow wrist
Interference is avoided by routing wiring through the hollow wrist.Flexible operation even in narrow spaces.

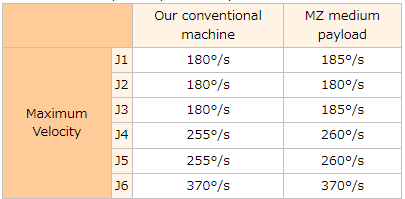

High speed and High precision
The high-rigidity design improves operating speed and position repeatability compared to previous models.Contributes to improved productivity.

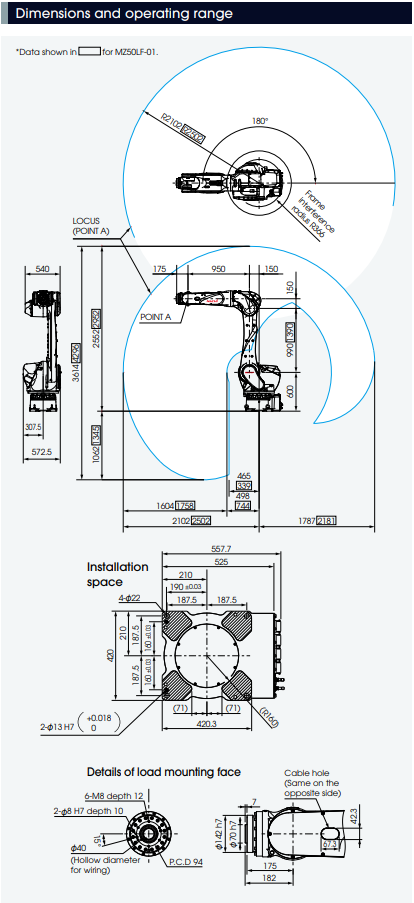

Robot dimensions and operating range
(*1) The specifications are subject to changes without notice.(*2) In case that an end user uses this product for military purpose or production of weapon. this product may be liable for the subject of export restriction stipulated in the Foreign Exchange and Foreign Trade Control Law. Please go through careful investigation and necessary formalities for export.

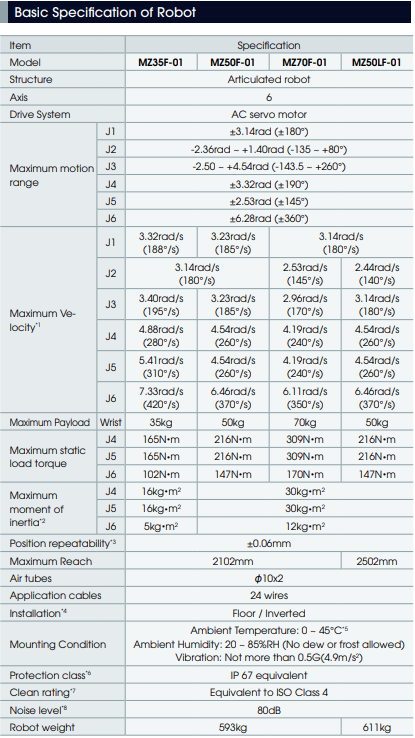

Basic specification of robot
1[rad]=180/[]. 1[Nm]=1/9.8[kgfm]* Specifications are subject to change without prior notice for technical changes.* Explosion-proof version is not available.*1:*2:*3:*4: *5: *6: *7:*8:The maximum velocity in the chart is the maximum value.It will change depending on the operation program and the wrist load condition.Depends on wrist load condition.JIS B 8432 conformance.Motion range is limited when wall mount and tilted mount. (Example; axis 1 motion range is 30 in case of wall mount)Using at 1000 m or lower sea level.Ambient temperature has limitations when allowable altitude is exceeded.Fluids that cause the deterioration of sealants. such as gasoline-based cutting fluids.chlorine. alkali. acids. and organic solvents. cannot be used. The wire-harness portion isIP65 equivalent. and the robot controller is IP20 equivalent.This is based on an internal assessment in accordance with ISO 14644-1.To ensure a cleanliness. install the robot in a down-flow type cleanroom.The robot's packaging is not dust proof. Before bringing the robot into a cleanroom. youmust clean the robot by wiping it o or by removing dust and fine particles from it.Robot noise is A-weighted equivalent sound level measu
