■WING SLICER Type EZ series EZ03
Smart cable routing
A large. 36 mm-diameter hole in the tip of the wrist.With all wires and tubes built into the machine body. the risk of interference is reduced and reliability is improved.
Complicated operations can be performed (6-axis model:to be released in this summer)
More complicated operations such as insertion from an angle. change of orientation in an assembly process and grinding/finishing are possible.
Various options
Operating envelope and exterior dimensions

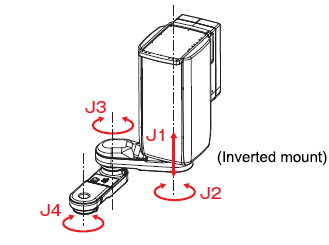

EZ03V4-02-4525 (Inverted mount)
* The values in ( ) are for EZ03V4-02-4515.
EZ03F4-02-5525 (Floor mount)
* The values in ( ) are for EZ03F4-02-5515.
(*1) The specifications are subject to changes without notice.(*2) In case that an end user uses this product for military purpose or production of weapon. this product may be liable for the subject of export restriction stipulated in the Foreign Exchange and Foreign Trade Act. Please go through careful investigation and necessary formalities for export.

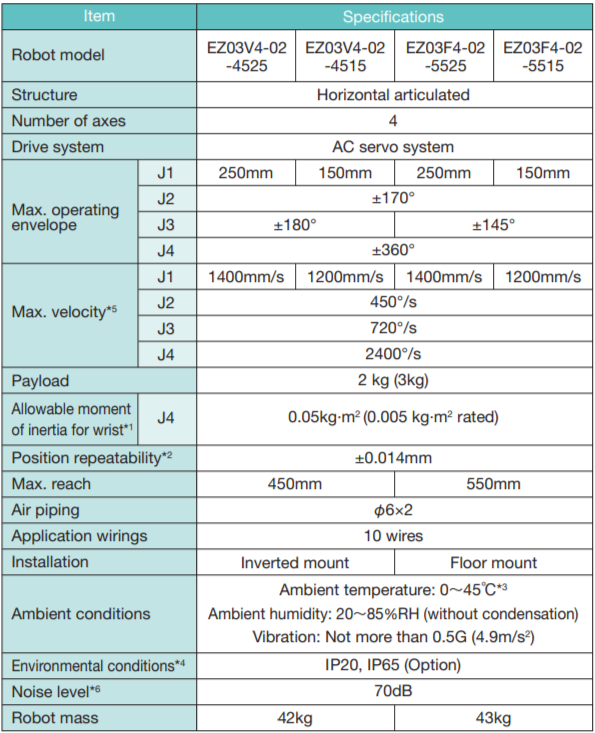

Basic specification of robot
1[rad] = 180/[]. 1[Nm] = 1/9.8[kgfm]* Explosion-proof version is not available.*1 The Allowable moment of inertia of a wrist changes with the load conditions of a wrist.*2 This value conforms to JIS B 8432.*3 Permitted height is not higher than 1.000m above sea level. If used in a higher place. permitted temperature is affected.*4 Fluids that cause the deterioration of sealants. such as gasoline-based cutting fluids. chlorine. alkali. acids. and organic solvents. cannot be used.*5 The maximum velocity in the chart is a maximum value. The maximum value may change depending on work programs and load conditions of the wrist.*6 A-weighted equivalent sound level measured according to JIS Z 8737-1 (ISO 11201).(while operating at maximum speed with rated load)
