Robots
Handling
■Compact and super fast robot MZ04/MZ04E
Fastest operating speed in its class improves productivity
The lightness of the robot arm and the latest control technologies give it the fastest operation in its class. which improves productivity.
Sophisticated and Smooth form
Its design prevents dust and dirt from accumulating and makes it easy to remove.

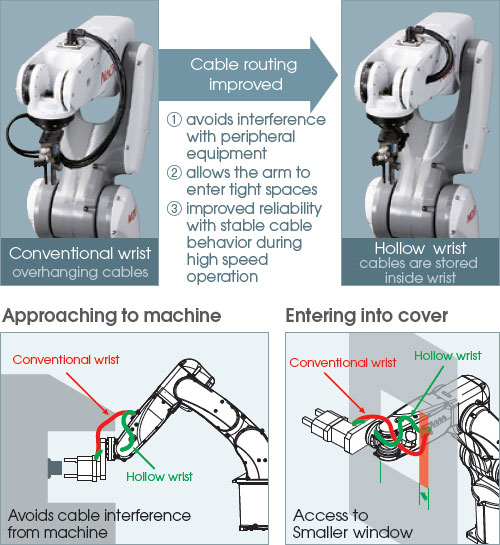

Smart Cable Routing
Cable and tubes can be routed through hollow wrist
Application Examples

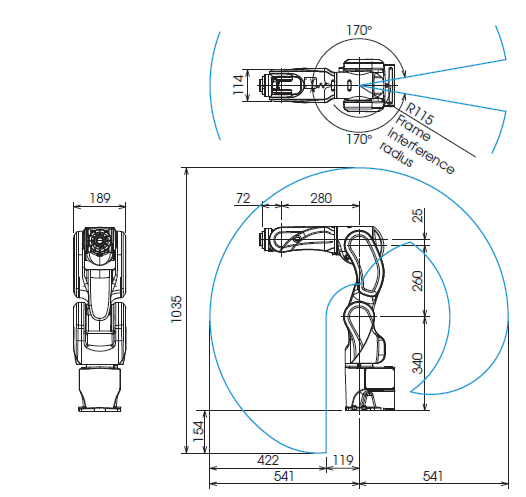

Robot dimensions and operating range

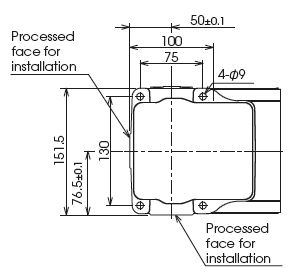

Robot base dimensions diagram
Detail of wrist
(*1) The specifications are subject to changes without notice.(*2) In case that an end user uses this product for military purpose or production of weapon. this product may be liable for the subject of export restriction stipulated in the Foreign Exchange and Foreign Trade Control Law. Please go through careful investigation and necessary formalities for export.

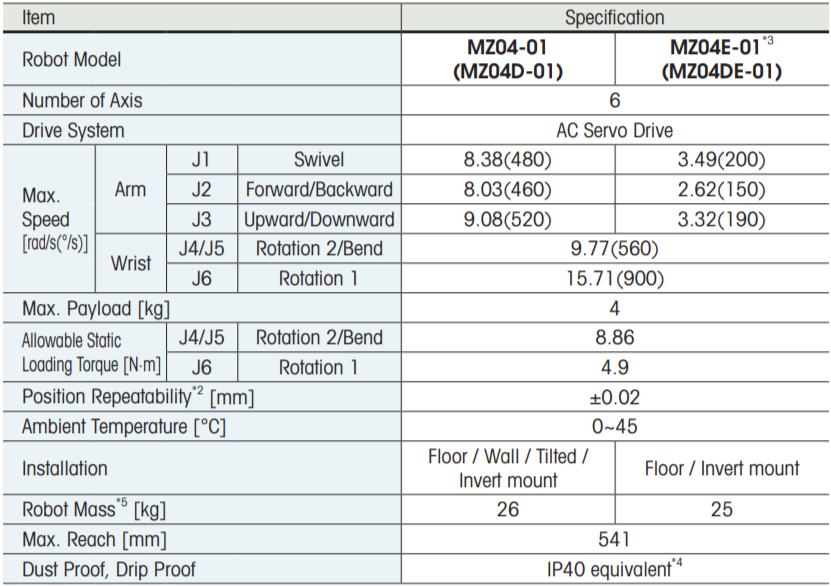

Basic specification of robot
1[rad]=180/[] 1[Nm]=1/9.8[kgfm](*2) JIS B 8432 compliant.(*3) MZ04E/MZ04DE has 80W motor or smaller in all axis.(*4) MZ04/MZ04E is IP40 equivalent. MZ04D/MZ04DE is IP67 (dust proof. drip proof).(*5) Wall mount Bottom Connection Type +4Kg.Bottom Connection Type +6kg.
Specification of controller
カタログダウンロード
Catalog Download
