In addition to the standard specification. visual. additional axis and force sensor specifications are available. satisfying all needs at a production worksite.
CFD Controller

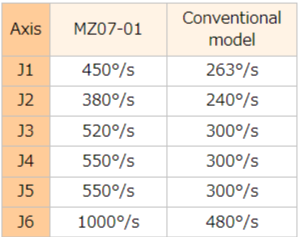

Maximum speed of each axis is the top in this classContributing to improvement of productivity by high speed
(*1) Payload is 1kg. This may vary according to the robot program and installation.(*2) This is the case with a load mass of 1 kg. It may change depending on the robot program. installation conditions. etc.

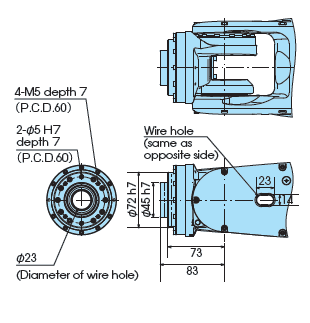

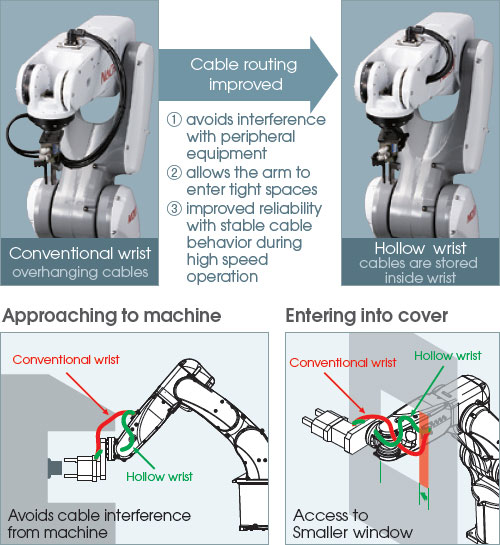

Cable and tubes can be routed through hollow wrist
(*1) The specifications are subject to changes without notice.(*2) In case that an end user uses this product for military purpose or production of weapon. this product may be liable for the subject of export restriction stipulated in the Foreign Exchange and Foreign Trade Law. Please go through careful investigation and necessary formalities for export.
(*1) The specifications are subject to changes without notice.(*2) In case that an end user uses this product for military purpose or production of weapon. this product may be liable for the subject of export restriction stipulated in the Foreign Exchange and Foreign Trade Law. Please go through careful investigation and necessary formalities for export.

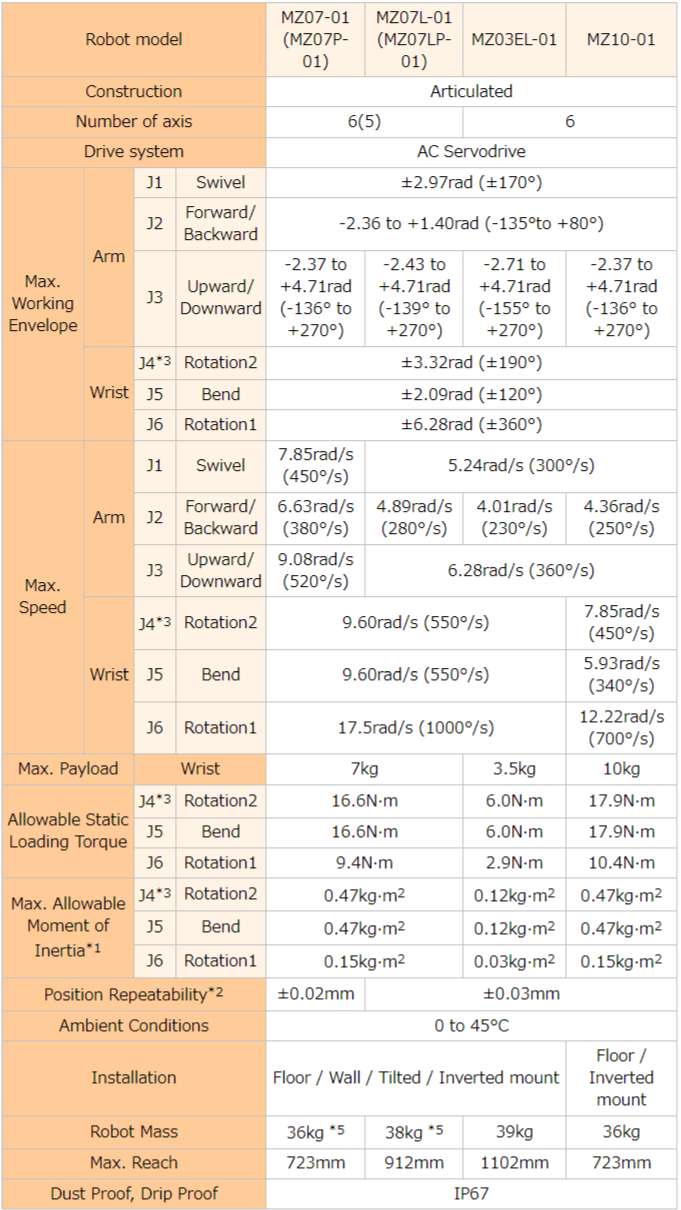

1[rad]=180/p[] 1[Nm]=1/9.8[kgfm](*1) Note that the allowable moment of inertia of wrist varies with the wrist load conditions.(*2) JIS B 8432 compliant.(*3) MZ07P-01 and MZ07LP-01 don't have J4 axis.(*4) The "Max. speed" in this table is the available maximum value and will change depending on the workprogram and the wrist load condition.(*5) Wall mount Bottom Connection Type +6kg.Bottomr Connection Type +8kg.
