■Compact and multipurpose robot MZ12

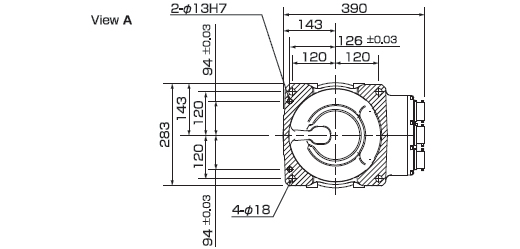

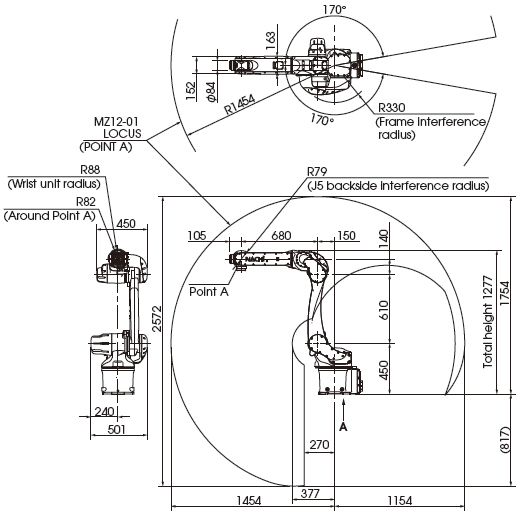

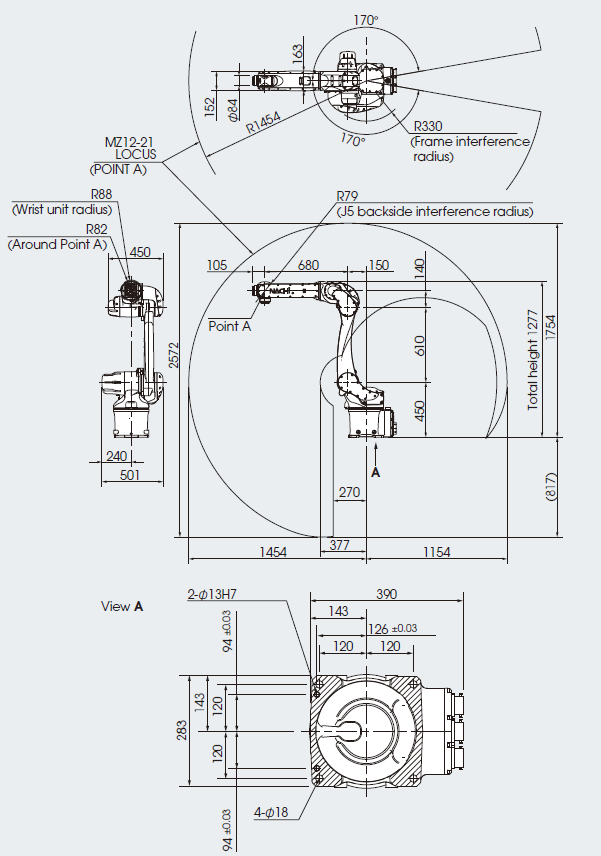

Robot Dimensions and Working Envelope

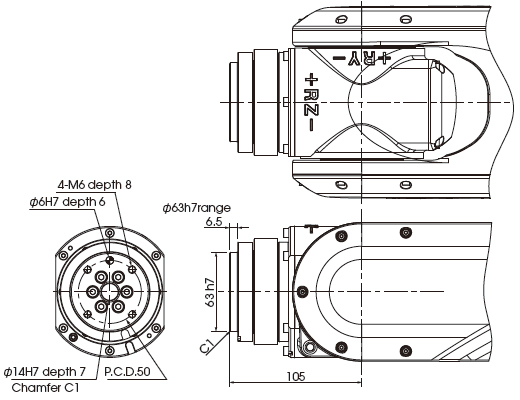

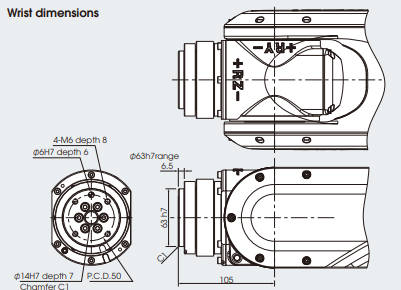

Wrist dimensions

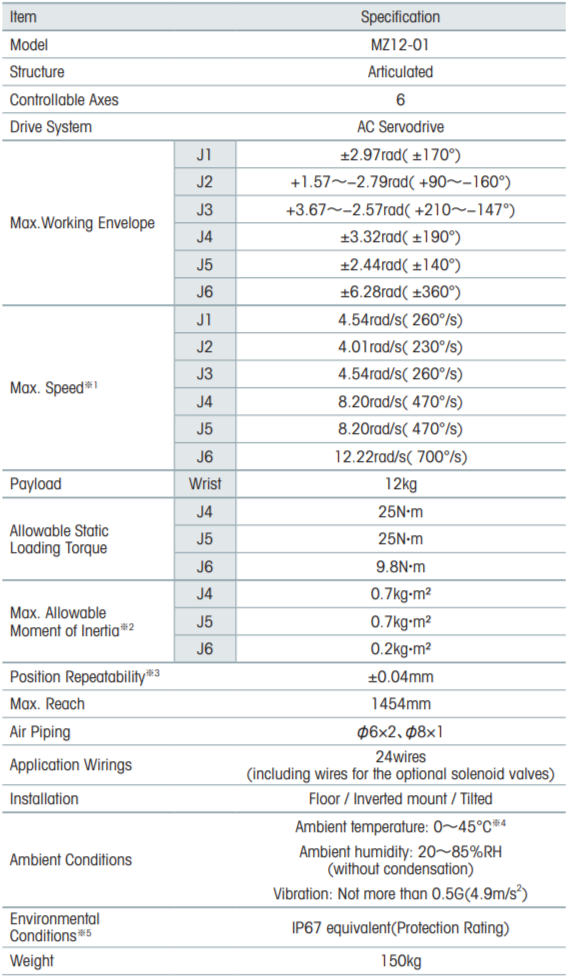

Basic specification of robot
1[rad]=180/[] 1[Nm]=1/9.8[kgfm]* Explosion-proof version is not available.*1 The maximum speed in the chart is a maximum value. The maximum value may change depending on work programs and load conditions of the wrist.*2 The Allowable Moment of Inertia of a wrist changes with load conditions of a wrist.*3 JIS B 8432 compliant.*4 Using at 1000 m or lower sea level. Ambient temperature has limitations when allowable altitude is exceeded.*5 Fluids that cause the deterioration of sealants. such as gasoline-based cutting fluids. chlorine. alkali. acids. and organic solvents. cannot be used. The wire-harness portion is IP65 equivalent. and the robot controller is IP20 equivalent.
