Products
Robots
Handling
■Multipurpose robot MZ12H
Hollow wrist structure
Integrated valves in the arm and smart cable and hose routing through the hollow wrist.Minimizes interference and wear.
Application example
Applicable to bad condition such as that dust and water drop is splashing.(Protection class IP67 equivalent)Built-in wiring and tubing enables the application utilizing big flow rate air blow.
Polishing. Deburring
Machine loading
Bad condition where cutting chipsare splashing
Bad condition where coolant is splashing

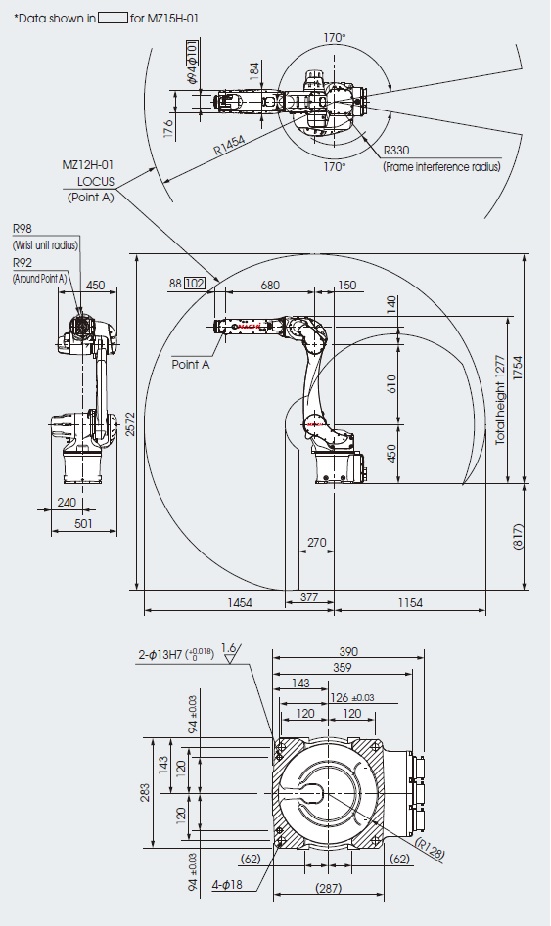

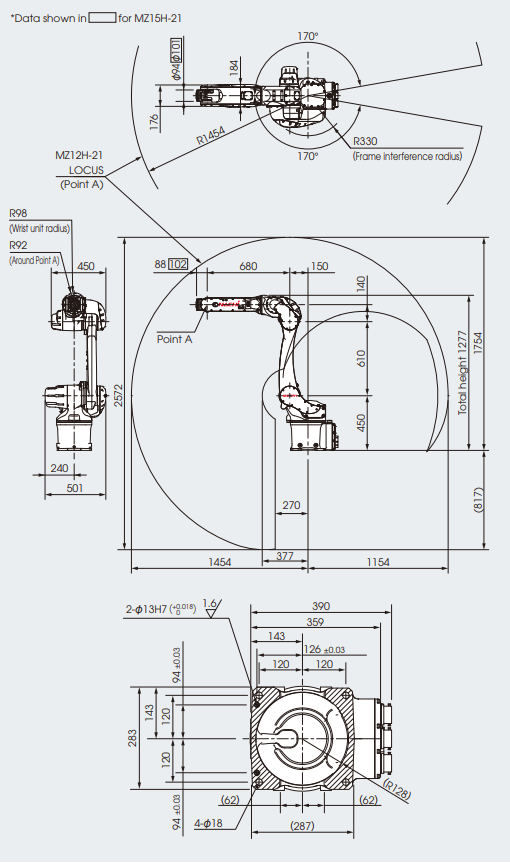

Robot dimensions and operating range

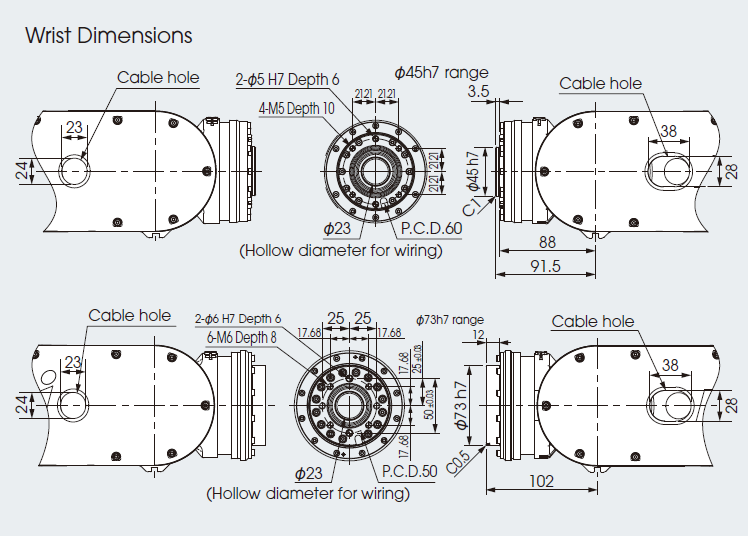

Wrist Dimensions

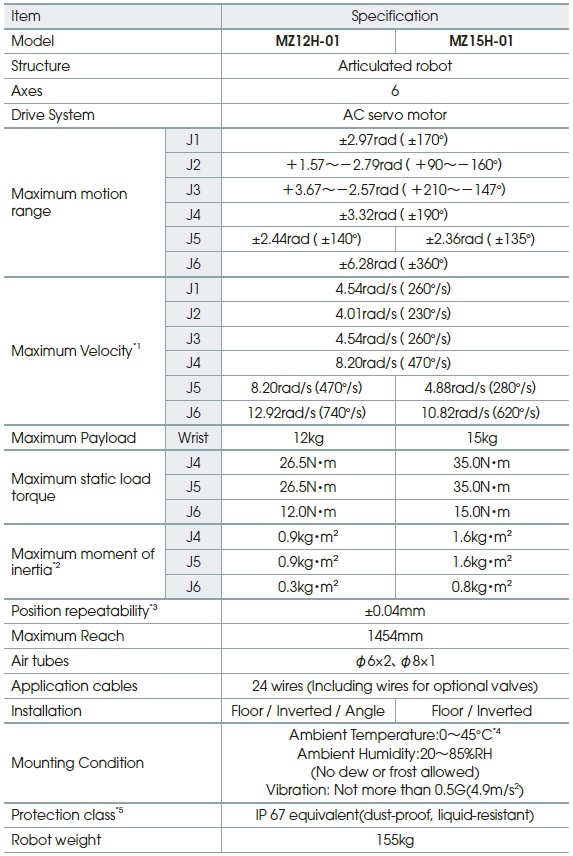

Basic specification of robot
1[rad]=180/[] 1[Nm]=1/9.8[kgfm]* Explosion-proof version is not available.*1 The maximum speed in the chart is a maximum value. The maximum value may change depending on work programs and load conditions of the wrist.*2 The Allowable Moment of Inertia of a wrist changes with load conditions of a wrist.*3 JIS B 8432 compliant.*4 Using at 1000 m or lower sea level. Ambient temperature has limitations when allowable altitude is exceeded.*5 Fluids that cause the deterioration of sealants. such as gasoline-based cutting fluids. chlorine. alkali. acids. and organic solvents. cannot be used. The wire-harness portion is IP65 equivalent. and the robot controller is IP20 equivalent.
カタログダウンロード
Catalog Download
