Robots

Handling

■MC series MC10S

"Powerful & Compact" Robot for various manufacturing processes

●Flexibility to support a variety of processes

Wide operating envelope, plus high water and dust proof performance (wrists and body). Compatible with variety of customer work environments.

●Streamlined wiring passes through hollow wrist

Reduced risk of wiring interfering with surrounding equipment to increase applicability and make easy access to narrow space.

●Compact body and powerful arm

Smallest in its class with a mere 280 mm installation width.

Exterior dimensions and operating envelope

(*1) The specications are subject to changes without notice.

(*2) In case that an end user uses this product for military purpose or production of weapon, this product may be liable for the subject of export restriction stipulated in the Foreign Exchange and Foreign Trade Control Law. Please go through careful investigation and necessary formalities for export.

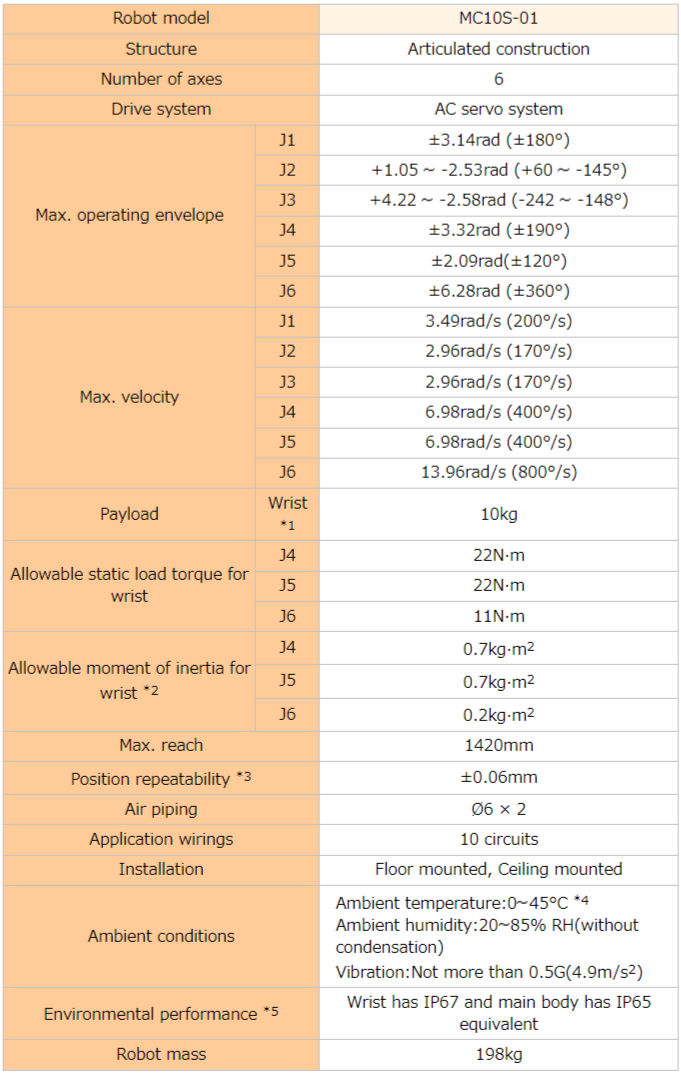

Robot specifications

1[rad] = 180/π[°], 1[N·m] = 1/9.8[kgf·m]

(*1) This value varies from the installed position and the wrist load mass.

(*2) Note that wrist moment of inertia varies depending on wrist load conditions.

(*3) JIS B 8432 compliant.

(*4) When used at less than 1,000 m above sea level. Exceeding the allowable altitude limits the acceptable ambient temperature.

(*5) Fluids that corrode the seal material, such as organic solvents, acids, alkalis, salts and petroleum-based cutting fluids, cannot be used.
