Machine Tools
Skiving machining center for Gears
■Skiving machining center for Gears GMS200

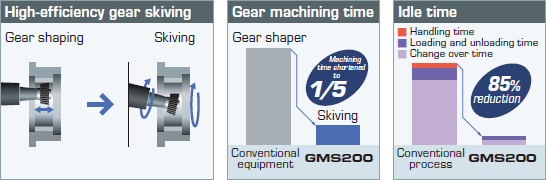

High-efficiency gear skiving and integrated process remarkably reduce machining time

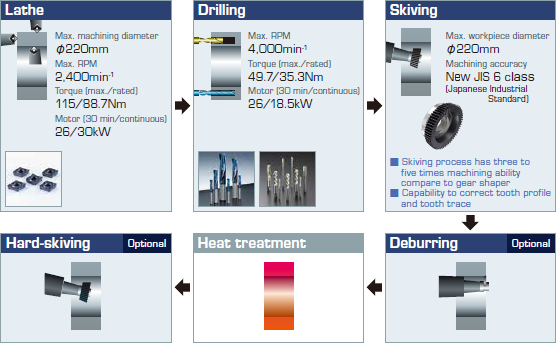

Multiple process in one machine

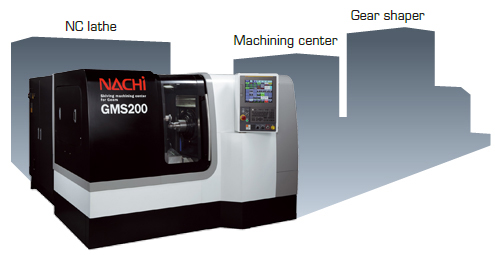

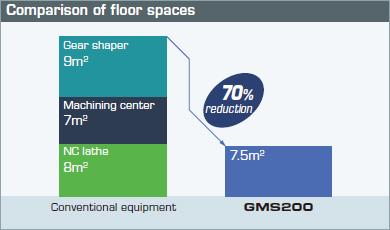

To achieve compact production lines by reducing floor space with 3 roles in 1 machine
Superior workability and operability

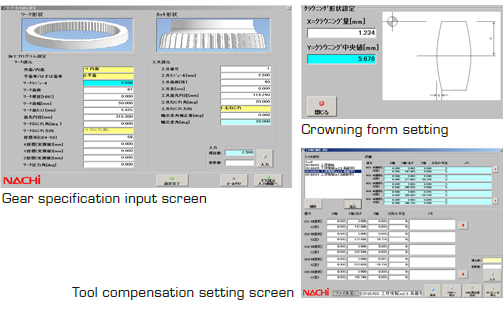

●Interactive operation screen for skiving (optional)
○ Crowning process and run-in amount modification function (initial mode) ○ Newly added tool compensation setting and workpiece coordinate system preset All machining conditions for skiving can be set
●Ceiling opening door
○ Aperture dimension : 600mm ○ Easy access to jig and simple loading & unloading of workpieces ○ Workpiece installation height : 1.170mm
●Reduced machine height for better view
○ Contribute to environment improvement in factory
The design for auto loading system with robots

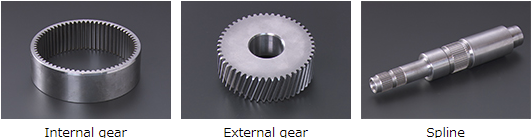

Machining application Skiving cutter for hard-skiving Combine with NACHI robots for auto loading system
●○ Achieved high precision of workpieces after heat treatment ○ The design reduces noise from reducer ○ NACHI's original DuAl Hard coating for hard skiving ○ Stable machining without rake face coating
Skiving Cutter product page
●Robots producgt page

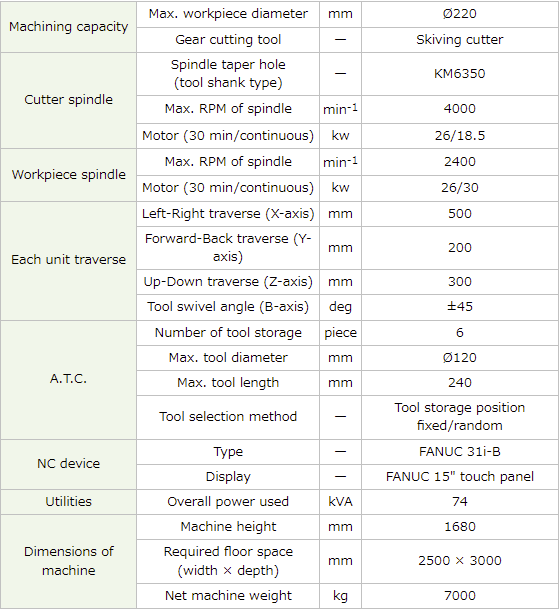

Main specification

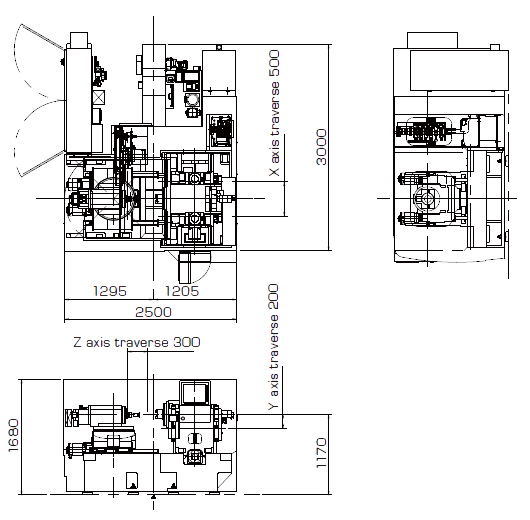

Layout diagram
Product line-up for ring gear machining
●GMS450 Main specification
Integrate three jobs on one machine (48sec)
>
Achieved compact and space saving body (40sec)
>
ATC (19sec)
●Integrate three jobs on one machine (48sec)
>Options (16sec)
●Achieved compact and space saving body (40sec)
>Full-size (4min42sec)
●ATC (19sec)
