Machine Tools
Skiving machining center for Gears
■Skiving machining center for Gears GMS450

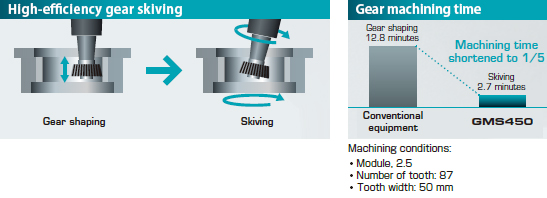

Reduces machining time to as much as 1/5 (compared to gear shaping)

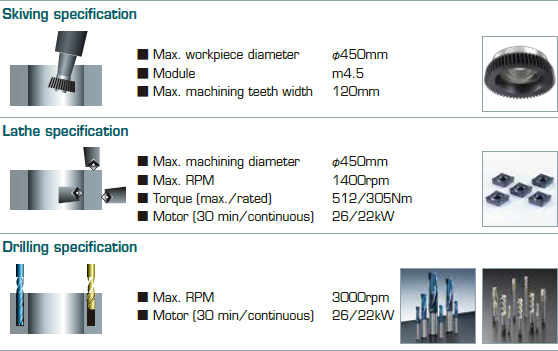

Three jobs consolidated in one machine
●Skiving machining center for Gears GMS450 achieves a high-efficiency gear skiving machine. Plus. it also has lathe and drill functions that integrate jobs in this skiving gear shaping machine.

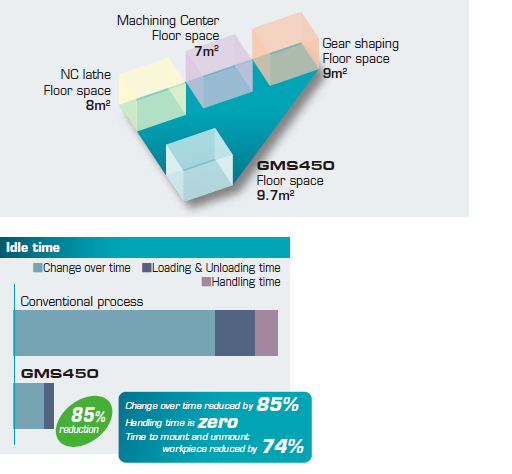

To achieve smart production lines by reducing floor space
●Skiving machining center for Gears requires little space to improve gear production lines to be smart production lines that can handle a variety of production formats from multi-type small-lot production to high-volume production.
Proprietary technologies produce new design skiving machine
●Upright machining center built with gantry-type column Skiving machine with table that rotates on B-axis
●○ New spindle designed for skiving
○ All axes have V-rail slides
●Super-rigid spindle equipped with large diameter bearing and high-torque direct drive motor
V-rail slides with superior rigidity and damping used on all sliding surfaces. including the tool spindle.
●○ X axis and B axis equipped with table clamp mechanism

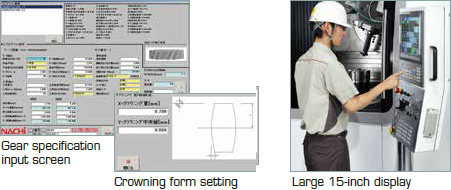

Superior workability and operability
●Simple changeover and loading & unloading of workpieces
Easy access to Jig

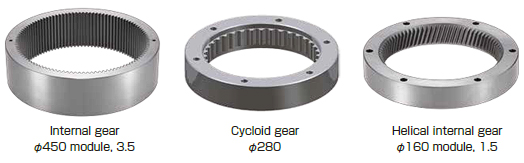

Machining application
Skiving cutter
●Propose our skiving cutter and cutting conditions to match the various workpiece specifications and applications.
●Features of NACHI cutters
○ Analyzed cutting mechanism with the cutting tool design technology and gear cutting technology that we have developed. Improved precision of machining work and extended tool life. ○ Established surface processing technology needed for skiving that produces better surfaces with optimized deposition process and design of coating components. ○ Carbide skiving cutters are able to achieve hard skiving process after heat treatment.
●Learn more Skiving cutter
Conbination with NACHI robots
●NACHI robots combine with machining . washing. deburring. and inspection equipment to produce a fully automated process.
NACHI Robots product lineup

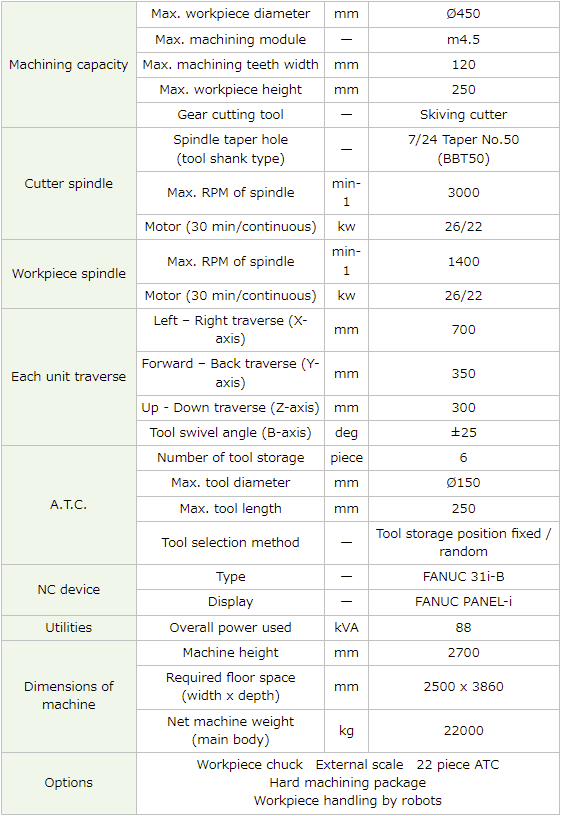

Main specification

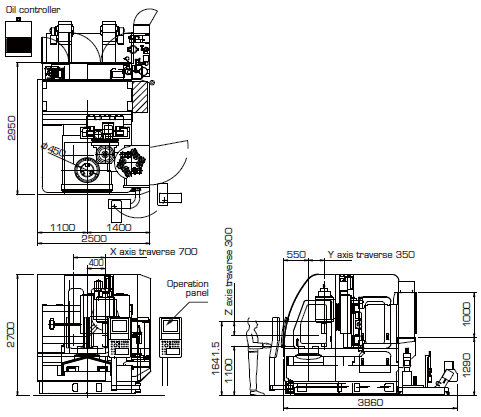

Layout diagram

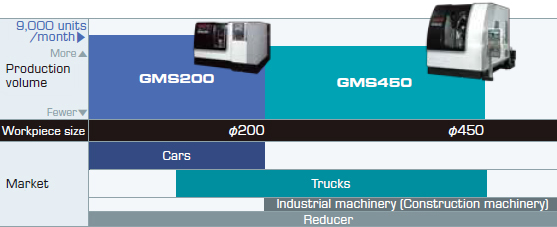

Product line-up for ring gear machining
●GMS200 Main specification
ATC (22sec)
>
Three jobs consolidated in one machine (42sec)
>
Easy access to Jig (20sec)
●ATC (22sec)
