Machine Tools
Grinding Machines
■Thread grinding machines “GTE Series”
●High versatility and excellent accuracy GTE-7A
○ Workpieces. Dia. fromØ4 to 200mm. can be handled with high versatility and excellent accuracy. ○ Precision ball screws smaller than Ø12mm is also applicable. ○ Space saving: 45% smaller than the GTE-10A.
●Thread grinding machines for mass production “GTE-SA series”
○ Thread grinding machine for mass production of automotive and other parts. ○ Each automation such as automatic clamping. automatic groove alignment. and automatic swivel wheel head helps to achieve high productivity. ○ Two space-saving models are available in different size. Max. 200mm and Max. 400mm (distance between enters).
< GTE-7A Features > Workrest is compatible with a wide range of workpieces
Fixed-bed-type workrest which supports changeover is best for smalldiameter workpieces.
●○ Fixed-bed-type workrest supports Ø12mm and smaller diameters. ○ Changeover to thin-type regular workrest is also possible. ○ One unit can grind a wide range of workpieces by using fixed-bed-type workrest for small diameter ball screws. and table-mounting-type workrest for medium and large ballscrews.
Angle domain of swivel wheel head is greatly expanded by using built-in motor
●Drum-type swivel wheel head and built-in low-vibration spindle.
○ A drum-type swivel wheel head is suitable for high-accuracy grinding. and can simultaneously swivel grinding wheel and dresser ±45°. A built-in motor is adopted in the wheel spindle.
●Smaller diameter drinding wheel makes changeover work easier.
○ Diameter of grinding wheel is reduced from Ø510mm to Ø355mm. and wheel flange weight is reduced by 50% for easier changeover.
●Improved maintainability and eco-friendly machine.
○ Eliminated drive belts and adopted grease lubrication for wheel spindle. Air consumption volume is reduced by 50%.
Specification

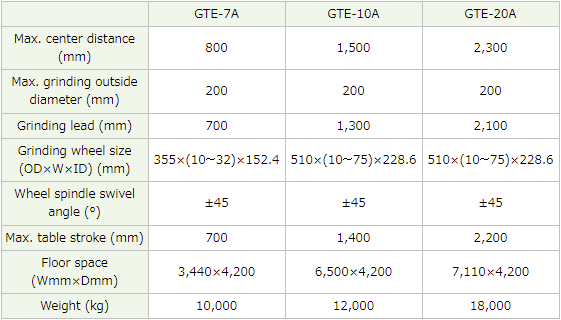

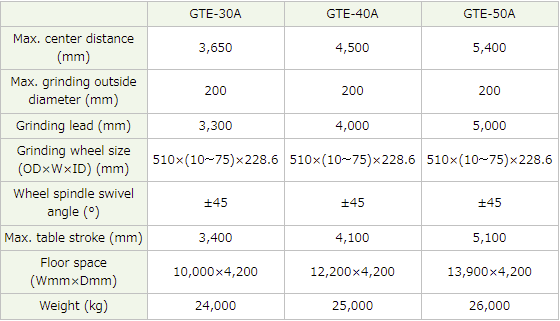

●●Thread grinding machines “GTE Series”

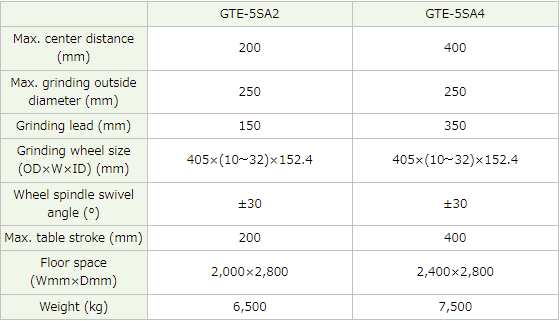

●●Thread grinding machines for mass production “GTE-SA series”
Layout diagram
●●GTE-7A
●●GTE-30A
●This machine is considered a strategic resource (or service) according to restrictions in the foreign exchange and trade laws. Based on these laws. export from Japan requires an export permit from the Japanese government.
Thread grinding machine
>
