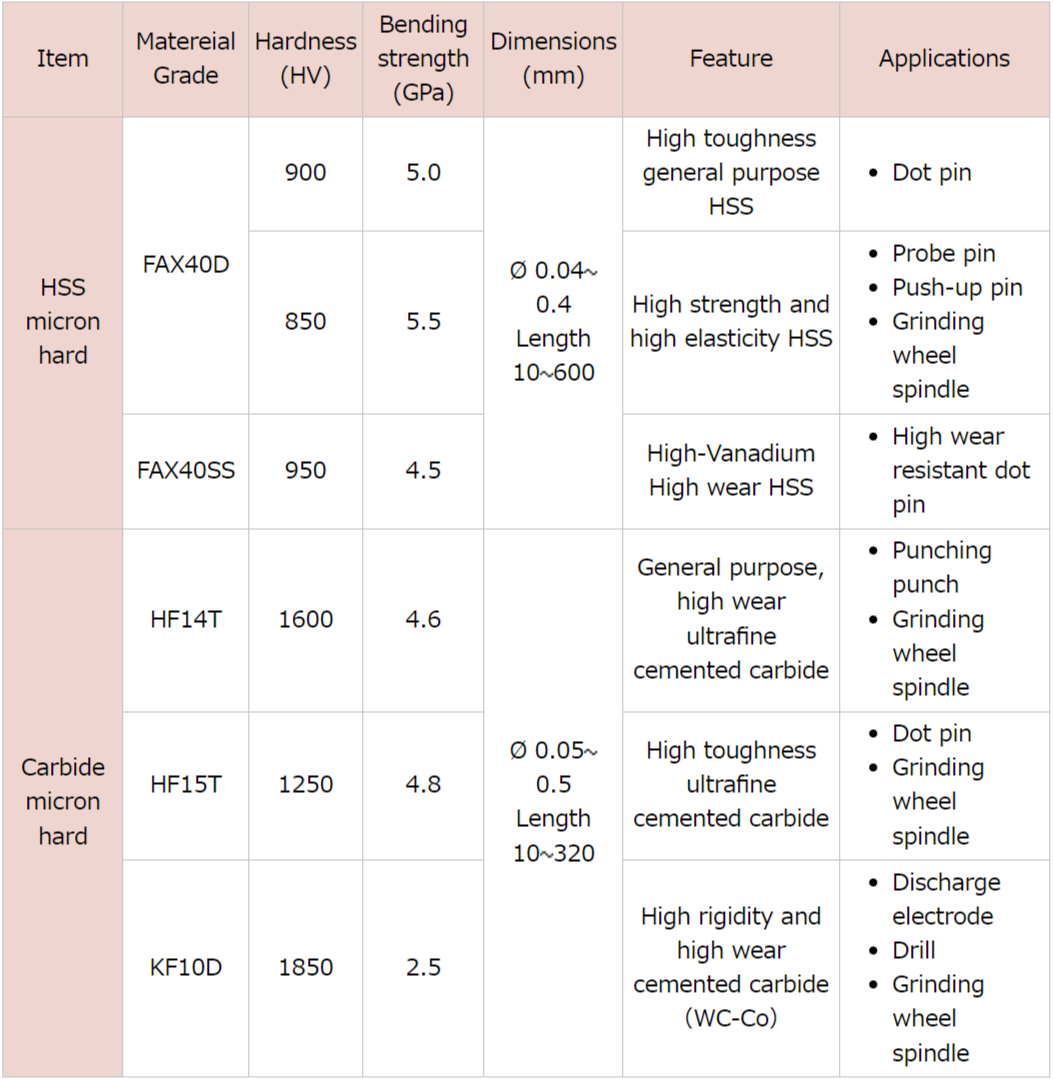

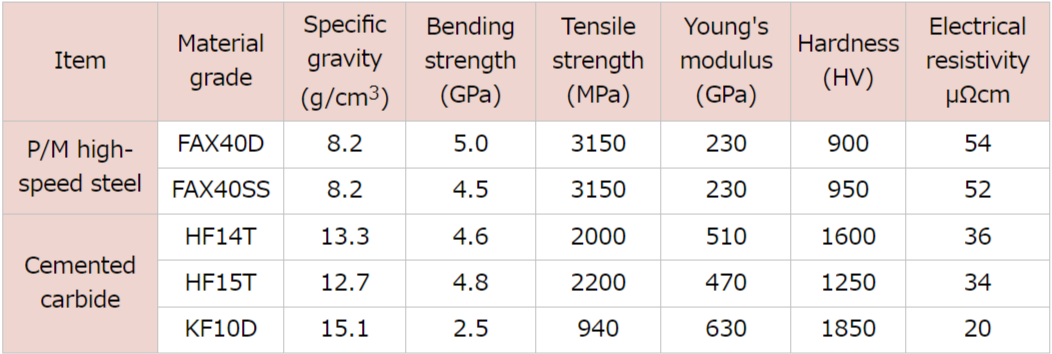

"Micron Hard" consists of the P/M high-speed steel wire and the cemented carbide wire.
"HSS micron hard" is High hardness ultrafine quenched wire and realized the high diameter 0.04mm.
"Carbide micron hard" the wire of ultra-fine sintered material which provides high diameter 0.3mm of straightness and ultra-fine grinding wire that achieves high-precision diameter 0.05mm.

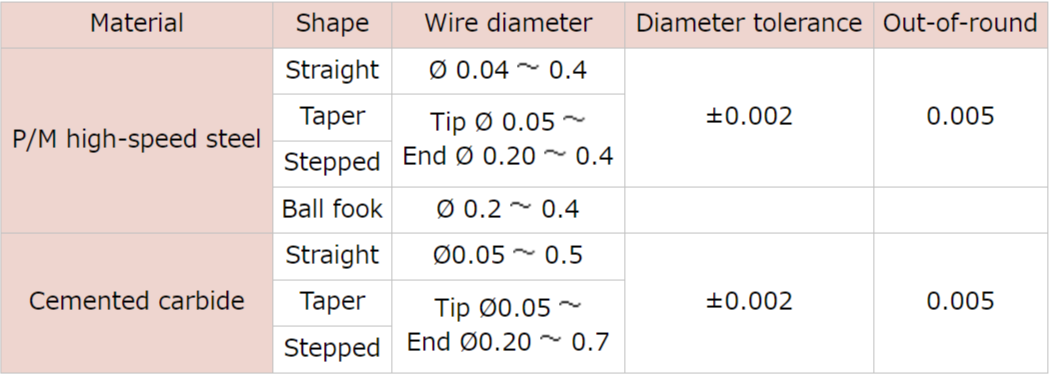

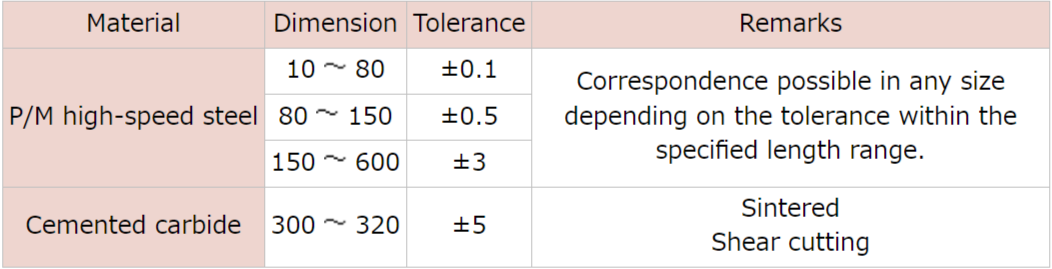

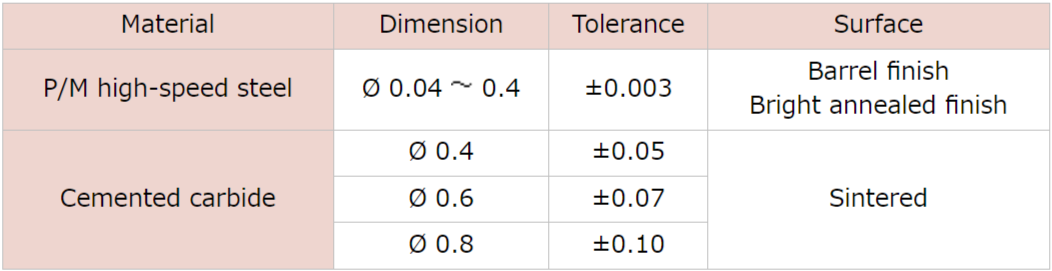

1.Shape of the wire
(note) square also available upon request

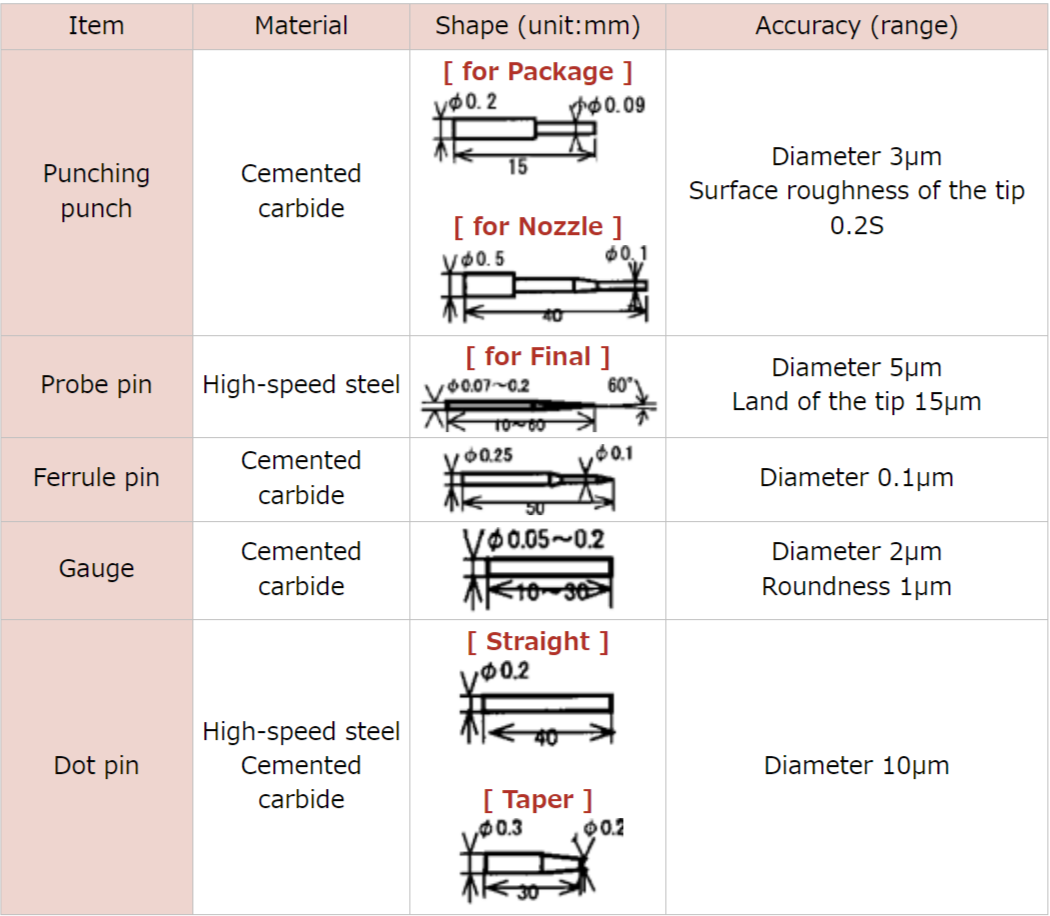

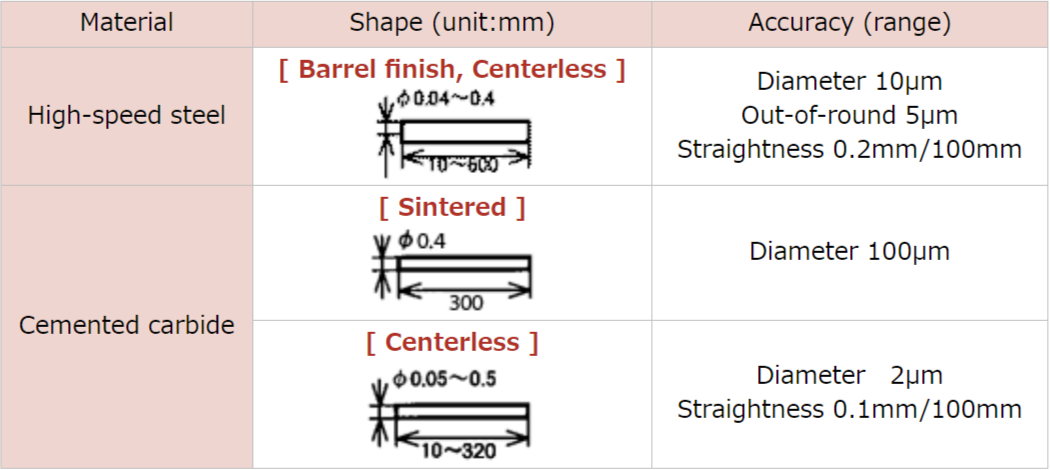

2.Shape of the finished product

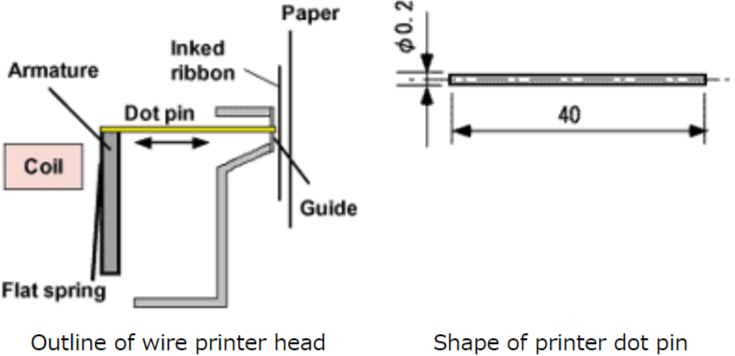

1.Dot Pin Used for Impact Printer (High-speed steel. Cemented carbide)

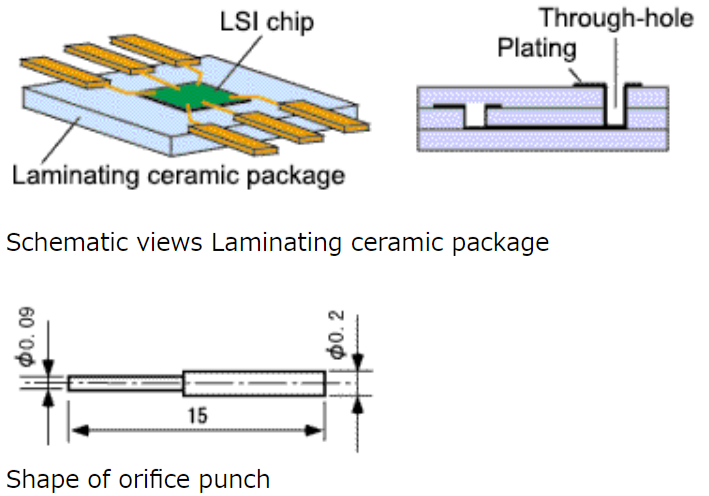

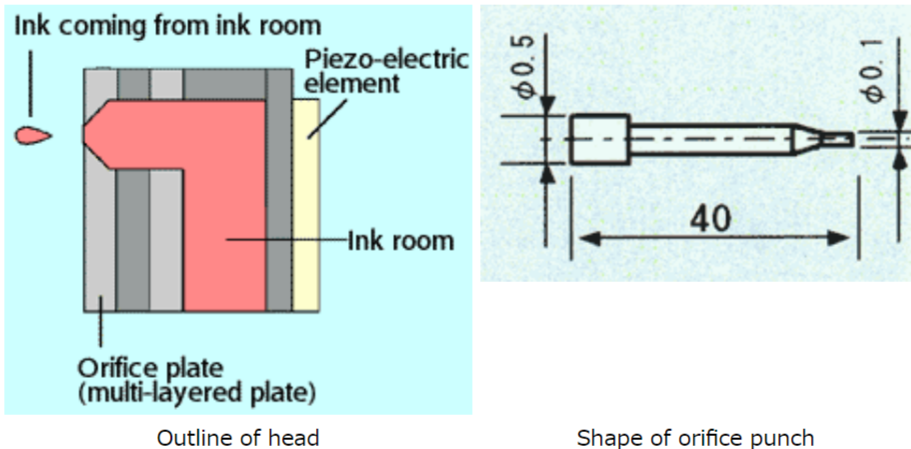

2.Orifice Punch for Inkjet Head (Cemented carbide)
3.Semiconductor Package Punch (Cemented carbide)

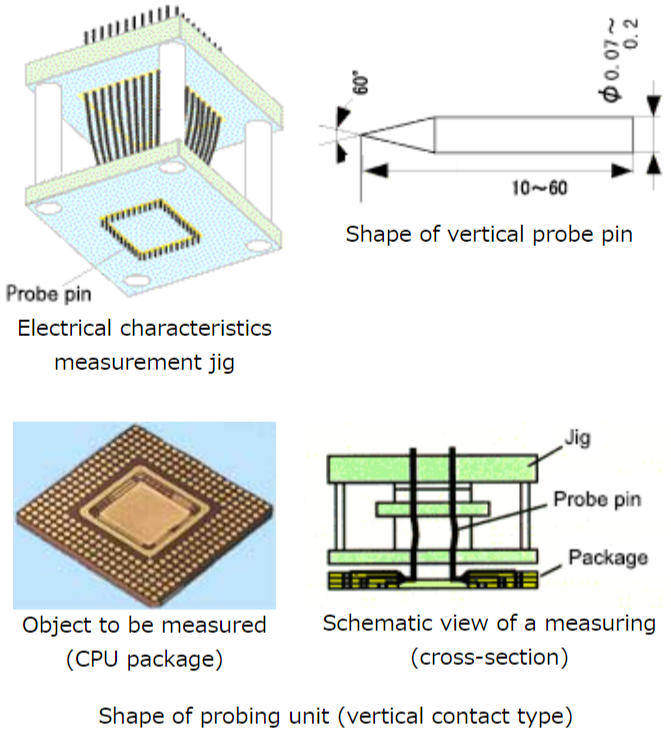

4.IC Inspection Method and Usage of Probe Pin (High speed steel)
